CONSMA001-SMD

Active

TE Connectivity Linx

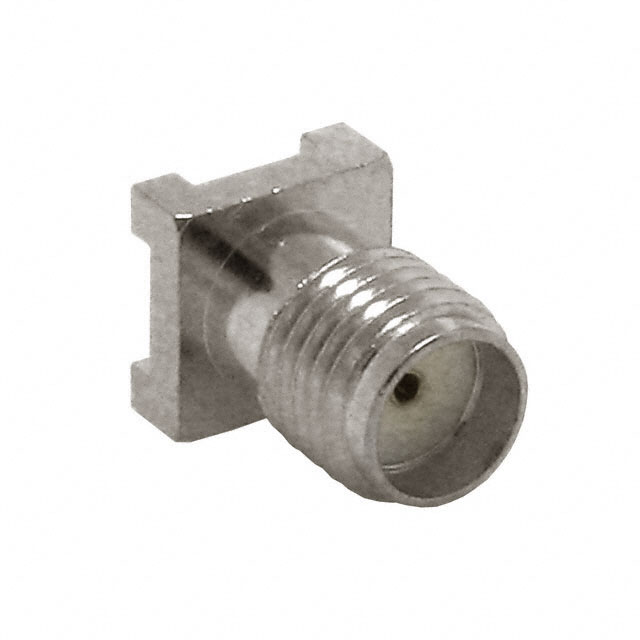

CONN SMA RCPT STR 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRF Connector Overview Guide~Datasheet

CONSMA001-SMD

Active

TE Connectivity Linx

CONN SMA RCPT STR 50 OHM SMD

Deep-Dive with AI

DocumentsRF Connector Overview Guide~Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMA001-SMD

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

CONSMA Series

Part	Body Material	Connector Style	Shield Termination	Impedance	Connector Type	Center Contact Plating	Frequency - Max [Max]	Center Contact Material	Contact Termination	Number of Ports	Dielectric Material	Body Finish	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Mounting Type	Features	Mounting Feature	Voltage Rating	Includes	Cable Group	Style	Convert To (Adapter End)	Adapter Series	Convert From (Adapter End)	Adapter Type	Conversion Type
TE Connectivity Linx CONSMA001	Brass	SMA	Solder	50 Ohms	Female Socket Receptacle	Gold	12.4 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500	Through Hole
TE Connectivity Linx CONSMA018-4-G	Brass	SMA	Solder	50 Ohms	Female Socket Jack	Gold	18 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Gold	Gold	-55 °C	155 °C	500		Extended Insulation	Flange	1500 V
TE Connectivity Linx CONSMA003.031-L	Brass	SMA	Solder	50 Ohms	Female Socket Receptacle	Gold	18 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500	Board Edge End Launch Panel Mount		Bulkhead - Front Side Nut		1 Connector 1 Lockwasher 1 Nut
TE Connectivity Linx CONSMA001-SMD	Brass	SMA	Solder	50 Ohms	Female Socket Receptacle	Gold	18 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500	Surface Mount
TE Connectivity Linx CONSMA014	Brass	SMA	Crimp	50 Ohms	Female Socket Receptacle	Gold	12.4 GHz	Brass	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500			Bulkhead - Front Side Nut	335 V		RG-174
TE Connectivity Linx CONSMA010	Brass			50 Ohms		Gold	12.4 GHz	Beryllium Copper			Polytetrafluoroethylene (PTFE)	Nickel		-65 ░C	165 °C	500	Free Hanging (In-Line) Right Angle						Right Angle	Female Socket SMA Jack	SMA to SMA	SMA Plug Male Pin	Plug to Jack	Same Series
TE Connectivity Linx CONSMA011-R178	Brass	SMA	Crimp	50 Ohms	Female Socket Receptacle	Gold	12.4 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500	Free Hanging (In-Line)			250 VDC	1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support	RG-178
TE Connectivity Linx CONSMA006.062	Brass	SMA	Solder	50 Ohms	Female Socket Receptacle	Gold	18 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500	Board Edge End Launch Panel Mount		Bulkhead - Front Side Nut		1 Connector 1 Lockwasher 1 Nut
TE Connectivity Linx CONSMA002-SMD-G	Brass	SMA	Solder	50 Ohms	Female Socket Receptacle	Gold	18 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Gold	Gold	-65 ░C	165 °C	500	Surface Mount Right Angle
TE Connectivity Linx CONSMA003.062	Brass	SMA	Solder	50 Ohms	Female Socket Receptacle	Gold	18 GHz	Beryllium Copper	Solder	1	Polytetrafluoroethylene (PTFE)	Nickel	Silver	-65 ░C	165 °C	500	Board Edge End Launch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 4.30

Description

General part information

CONSMA Series

SMA Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder

Documents

Technical documentation and resources

RF Connector Overview Guide~

Datasheet
