ABJ1410619

Obsolete

Panasonic Electric Works

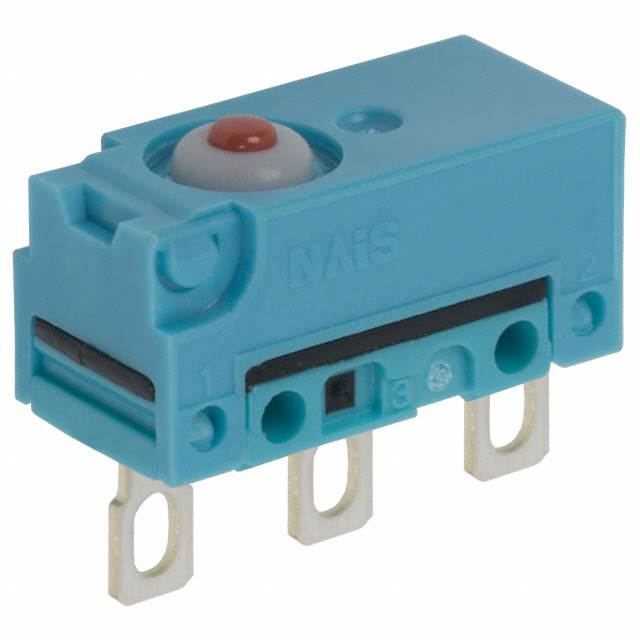

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

ABJ1410619

Obsolete

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABJ1410619

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.13 mm
Differential Travel	0.005 in
Electrical Life	6000 Cycles
Ingress Protection	IP50
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	200 gf
Operating Position	0.217 in
Operating Position	5.5 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.25 mm
Overtravel	0.01 in
Pretravel	0.024 in
Pretravel	0.6 mm
Release Force	25 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

ABJ141 Series

Part	Release Force	Pretravel	Pretravel	Electrical Life	Mechanical Life	Voltage Rating - AC	Operating Position	Operating Position	Ingress Protection	Mounting Type	Overtravel	Overtravel	Voltage Rating - DC	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Termination Style	Operating Force	Switch Function	Current Rating (Amps)	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ABJ1410409	15 gf	0.024 in	0.6 mm	6000 Cycles	1000000 Cycles	125 V	0.217 in	5.5 mm	IP50	Chassis Mount	0.25 mm	0.01 in	30 V	0.13 mm	0.005 in	85 °C	-40 °C	SPDT	Round (Pin Plunger)	Solder Lug	125 gf	On-Mom
Panasonic Electric Works ABJ1410619	25 gf	0.024 in	0.6 mm	6000 Cycles	1000000 Cycles	125 V	0.217 in	5.5 mm	IP50	Chassis Mount	0.25 mm	0.01 in	30 V	0.13 mm	0.005 in	85 °C	-40 °C	SPDT	Round (Pin Plunger)	Solder Lug	200 gf	On-Mom	100 mA
Panasonic Electric Works ABJ141041	15 gf	0.024 in	0.6 mm	100000 Cycles	1000000 Cycles	125 V	0.217 in	5.5 mm	IP50	Chassis Mount	0.25 mm	0.01 in	30 V	0.13 mm	0.005 in	85 °C	-40 °C	SPDT	Round (Pin Plunger)	Solder Lug	125 gf	On-Mom	100 mA
Panasonic Electric Works ABJ141061	25 gf	0.024 in	0.6 mm	100000 Cycles	1000000 Cycles	125 V	0.217 in	5.5 mm	IP50	Chassis Mount	0.25 mm	0.01 in	30 V	0.13 mm	0.005 in	85 °C	-40 °C	SPDT	Round (Pin Plunger)	Solder Lug	200 gf	On-Mom	100 mA
Panasonic Electric Works ABJ1416419	3.059 gf	0.12 in	3 mm	6000 Cycles	1000000 Cycles	125 V	0.516 in	13.1 mm	IP50	Chassis Mount	0.5 mm	0.02 in	30 V	0.5 mm	0.02 in	85 °C	-40 °C	SPDT	Lever Roller	Solder Lug	40 gf	On-Mom	100 mA
Panasonic Electric Works ABJ1412419	3.059 gf	0.12 in	3 mm	6000 Cycles	1000000 Cycles	125 V	0.268 "	6.8 mm	IP50	Chassis Mount	0.5 mm	0.02 in	30 V	0.5 mm	0.02 in	85 °C	-40 °C	SPDT	Lever Straight	Solder Lug	40 gf	On-Mom	100 mA
Panasonic Electric Works ABJ141241	3.059 gf	0.12 in	3 mm	100000 Cycles	1000000 Cycles	125 V	0.268 "	6.8 mm	IP50	Chassis Mount	0.5 mm	0.02 in	30 V	0.5 mm	0.02 in	85 °C	-40 °C	SPDT	Lever Straight	Solder Lug	40 gf	On-Mom	100 mA
Panasonic Electric Works ABJ141441	3.059 gf	0.12 in	3 mm	100000 Cycles	1000000 Cycles	125 V			IP50	Chassis Mount	0.5 mm	0.02 in	30 V	0.5 mm	0.02 in	85 °C	-40 °C	SPDT	Lever Simulated Roller	Solder Lug	40 gf	On-Mom	100 mA	9.8 mm	0.386 in
Panasonic Electric Works ABJ141240	3.059 gf	0.12 in	3 mm	30000 Cycles	1000000 Cycles	125 V	0.268 "	6.8 mm	IP50	Chassis Mount	0.5 mm	0.02 in	30 V	0.5 mm	0.02 in	85 °C	-40 °C	SPDT	Lever Straight	Solder Lug	40 gf	On-Mom
Panasonic Electric Works ABJ141460	5.099 gf	0.12 in	3 mm	30000 Cycles	1000000 Cycles	125 V			IP50	Chassis Mount	0.5 mm	0.02 in	30 V	0.5 mm	0.02 in	85 °C	-40 °C	SPDT	Lever Simulated Roller	Solder Lug	65 gf	On-Mom	2 A	9.8 mm	0.386 in
