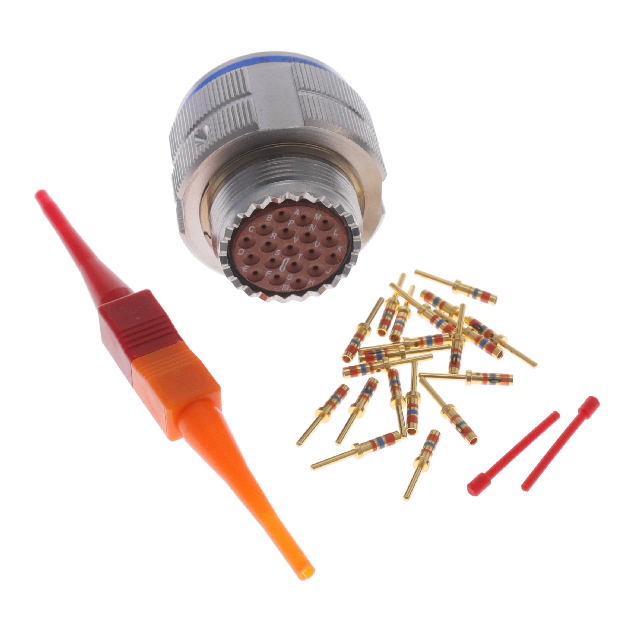

D38999/26FD19PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FD19PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FD19PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/26FD Series

Part	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Insert Material	Termination	Shell Finish	Grade	Connector Type	Shell Material	Shell Size - Insert	Qualification	Primary Material	Shell Size, MIL	Color	Applications	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Contact Material	Number of Positions	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Backshell Material, Plating	Type	Contact Type	Housing Color	Contact Size	Contact Shape	Note
Amphenol Aerospace Operations D38999/26FD5PN	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold	Thermoplastic	Crimp	Electroless Nickel	Military	Male Pins Plug	Aluminum	15-5	MIL-DTL-38999 Series III	Metal	D	Silver	Aerospace Aviation Marine Military	N	-65 ░C	200 °C	Shielded	Self Locking	Copper Alloy
Amphenol Aerospace Operations D38999/26FD19SN	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold		Crimp	Electroless Nickel	Military	Female Sockets Plug	Aluminum		MIL-DTL-38999 Series III	Metal	D	Silver	Aerospace Aviation Marine Military	N	-65 ░C	200 °C	Shielded	Coupling Nut	Copper Alloy	19	19	15
Amphenol Aerospace Operations D38999/26FD19PN	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold	Thermoplastic	Crimp	Electroless Nickel	Military	Male Pins Plug	Aluminum		MIL-DTL-38999 Series III	Metal	D	Silver	Aerospace Aviation Marine Military	N	-65 ░C	200 °C	Shielded	Self Locking	Copper Alloy	19	19	15
Amphenol Aerospace Operations D38999/26FD15HN	Environment Resistant	2.54 çm	100 çin	Free Hanging (In-Line)	Gold		Crimp	Electroless Nickel	Military	Male Pins Plug	Aluminum		MIL-DTL-38999 Series III	Metal	D	Silver	Aviation Marine Military	N	-65 ░C	200 °C	Shielded	Coupling Nut Self Locking	Copper Alloy	15			15	15
Amphenol Aerospace Operations D38999/26FD35SA-UT	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold		Crimp	Electroless Nickel	Military	Female Sockets Plug	Aluminum		MIL-DTL-38999 Series III	Metal	D	Silver	Aviation Marine Military	A	-65 ░C	200 °C	Shielded	Backshell Coupling Nut Self Locking Shielding Device	Copper Alloy	37			15	35	Metal
Amphenol Aerospace Operations D38999/26FD5SN	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold		Crimp	Electroless Nickel	Military	Female Sockets Plug	Aluminum	15-5	MIL-DTL-38999 Series III	Metal	D	Silver	Aerospace Aviation Marine Military	N	-65 ░C	200 °C	Shielded	Coupling Nut	Copper Alloy
Amphenol Aerospace Operations D38999/26FD19SN-U	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold		Crimp	Electroless Nickel	Military	Female Sockets Plug	Aluminum		MIL-DTL-38999 Series III	Metal	D	Silver	Aviation Marine Military	N	-65 ░C	200 °C	Unshielded	Backshell Coupling Nut Self Locking	Copper Alloy	19	19	15			Metal
Amphenol Aerospace Operations D38999/26FD97SN	Environment Resistant	1.27 µm	50 µin	Free Hanging (In-Line)	Gold	Thermoplastic	Crimp	Electroless Nickel	Military	Female Sockets Plug	Aluminum		MIL-DTL-38999 Series III	Metal	D	Silver	Aerospace Aviation Marine Military	N	-65 ░C	200 °C	Shielded	Self Locking	Copper Alloy	12			15	97
Amphenol Aerospace Operations D38999/26FD5AD	Environment Resistant			Free Hanging (In-Line)				Electroless Nickel	Military	Plug Housing	Aluminum	15-5	MIL-DTL-38999 Series III		D			D	-65 ░C	200 °C	Shielded	Coupling Nut Self Locking								For Male Pins	Crimp	Silver	16	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/26FD5AA	Environment Resistant			Free Hanging (In-Line)		Thermoplastic		Electroless Nickel	Military	Plug Housing	Aluminum	15-5	MIL-DTL-38999 Series III	Metal	D			A	-65 ░C	200 °C	Shielded	Coupling Nut Self Locking								For Male Pins	Crimp	Silver	16	Circular	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 200.75
		10	$ 157.07
		25	$ 143.28
		50	$ 133.99

Description

General part information

D38999/26FD Series

19 Position Circular Connector Plug, Male Pins Crimp
