CSI-SGFI-150-UFFR

Active

TE Connectivity Linx

CBL ASSY U.FL-SMA JCK-PLG 5.191"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY U.FL-SMA JCK-PLG 5.191"

Technical Specifications

Parameters and characteristics for this part

Specification	CSI-SGFI-150-UFFR

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to SMA

Part	Overall Impedance	2nd Connector	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Feature	Color	Style	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	Cable Type	Length	Length	Length [x]	Length [x]
TE Connectivity Linx CSI-SGFI-150-UFFR	50 Ohms	U.FL (UMCC) Plug Right Angle	SMA Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Black	U.FL (UMCC) to SMA	Panel Mount	6000 MHz	Female	Female	1.13mm OD Coaxial Cable
TE Connectivity Linx CSI-SGFI-200-UFFR-B	50 Ohms	U.FL (UMCC) Plug Right Angle	SMA Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Gray	U.FL (UMCC) to SMA	Panel Mount	3 GHz	Female	Female	1.13mm OD Coaxial Cable	7.874 in	200 mm
TE Connectivity Linx CSI-SGFI-100-UFFR-B	50 Ohms	U.FL (UMCC) Plug Right Angle	SMA Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Gray	U.FL (UMCC) to SMA	Panel Mount	3 GHz	Female	Female	1.13mm OD Coaxial Cable			0.1 m	3.937 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

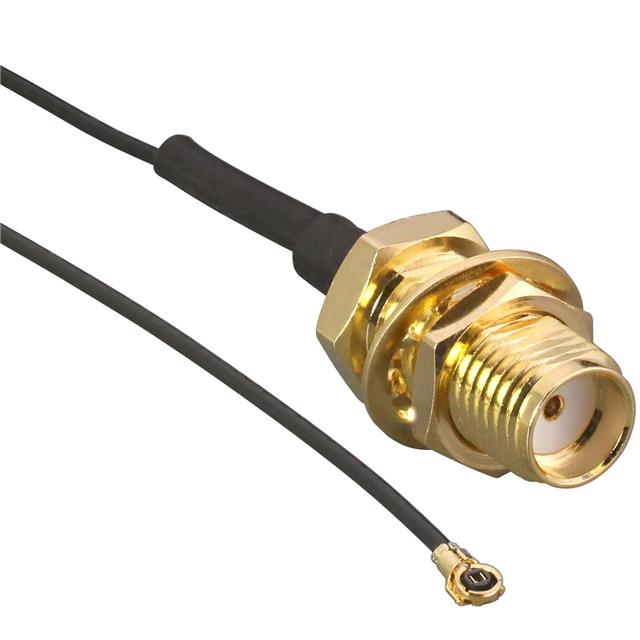

Cable Assembly Coaxial U.FL (UMCC) to SMA 1.13mm OD Coaxial Cable 5.191" (131.85mm)
