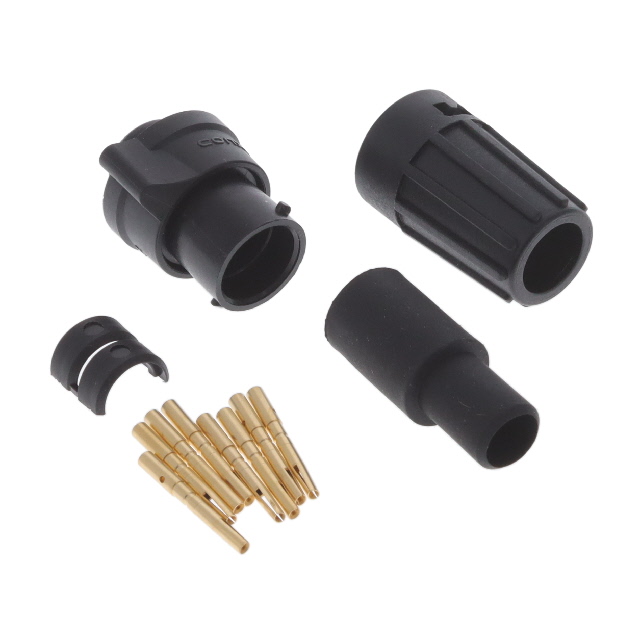

W6280-8SG-P-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	W6280-8SG-P-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	6.6 mm, 7.11 mm
Cable Opening [custom]	0.28 in, 0.26 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

Part	Current Rating (Amps)	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Termination	Ingress Protection	Applications	Primary Material	Shielding	Contact Finish - Mating	Contact Material	Insert Material	Voltage Rating	Features	Fastening Type	Orientation	Mounting Type	Number of Positions	Backshell Material, Plating
Conxall/Switchcraft W6280-8SG-P-528	Varies by Wire Gauge	Black	85 °C	-40 °C	Female Sockets Plug	6.6 mm 7.11 mm	0.26 in 0.28 in	Crimp	IP66 IP67 IP68	Automotive Communication Systems Instrumentation	Plastic	Unshielded	Gold	Copper Alloy	Thermoplastic	300 VAC	Backshell Coupling Nut UV Resistant	Bayonet Lock	Keyed	Free Hanging (In-Line)	8	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Crimp
