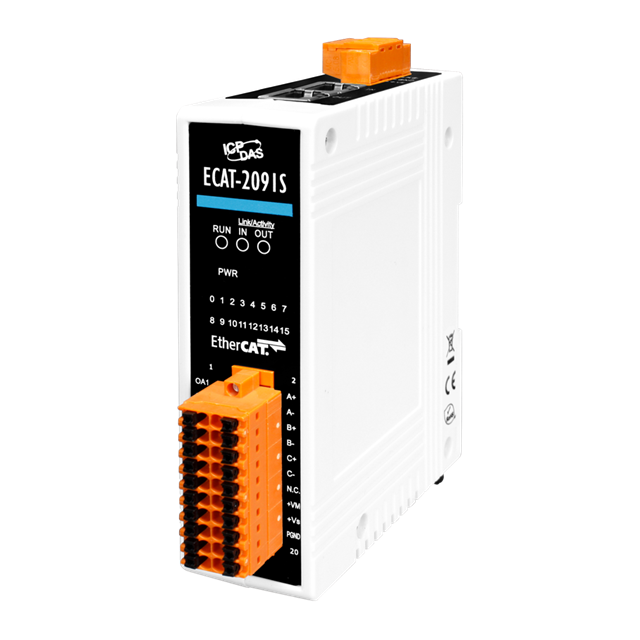

ECAT-2091S
ActiveICP DAS USA INC
ETHERCAT SINGLE AXIS STEPPER MOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECAT-2091S
ActiveICP DAS USA INC
ETHERCAT SINGLE AXIS STEPPER MOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECAT-2091S |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 1.5 A |
| Interface | EtherCat |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount, DIN Rail |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -25 °C |
| Type | Module |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 5 V |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 609.00 | |
Description
General part information
ECAT-2091 Series
Stepper, Bipolar 19 ~ 30VDC Supply 1.5A 5 ~ 30V Load
