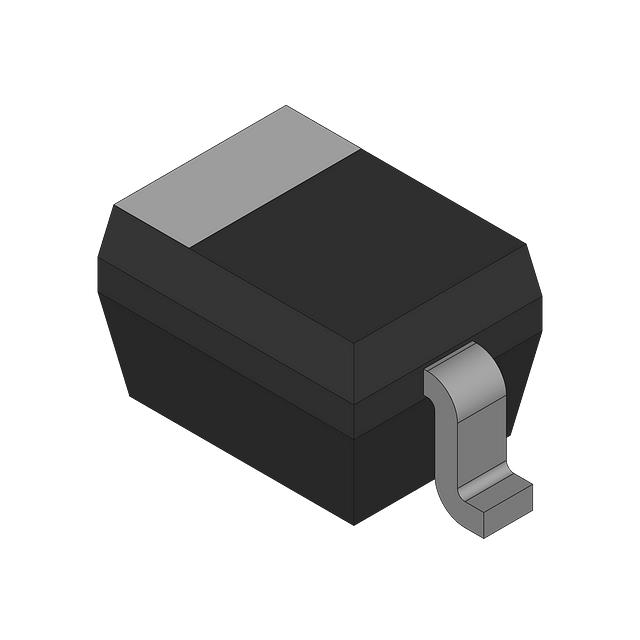

1PS76SB70/DG/B2115

Active

Freescale Semiconductor - NXP

RECTIFIER DIODE

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

RECTIFIER DIODE

Technical Specifications

Parameters and characteristics for this part

Specification	1PS76SB70/DG/B2115

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	70 mA
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 ¯C
Package / Case	SOD-323, SC-76
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	70 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Current - Average Rectified (Io)	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F
Freescale Semiconductor - NXP 1PS76SB70/DG/B2115	70 mA	Surface Mount	Schottky	10 µA	SOD-323	150 ¯C	1 V	Any Speed	200 mA	SC-76 SOD-323	70 V	2 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 70 V 70mA Surface Mount SOD-323

Technical documentation and resources

No documents available
