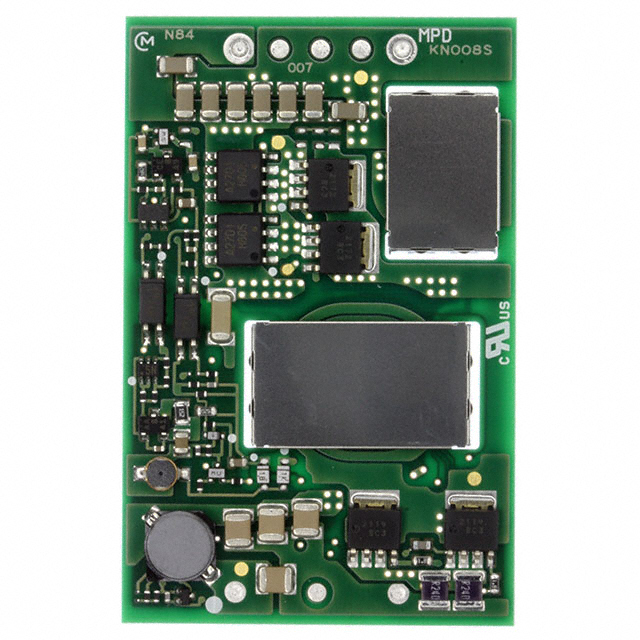

MPDKN008S

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 50W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Type	Mounting Type	Package / Case
Murata Power Solutions Inc. MPDKN008S	1	2.24 "	1.45 in	0.22 in	56.9 mm	36.8 mm	5.5 mm	10 A	85 °C	-40 °C	50 W	75 V	89 %	1.5 kV	5 V	ITE (Commercial)	36 V	Isolated Module	Through Hole	1/4 Brick 8-DIP Module
Murata Power Solutions Inc. MPDKN117S	1	2.24 "	0.86 "	0.35 "	56.9 mm	21.9 mm	9 mm	20 A	85 °C	-40 °C		75 V	89 %	1.5 kV	3.3 V	ITE (Commercial)	36 V	Isolated Module	Through Hole	1/8 Brick 8-DIP Module
Murata Power Solutions Inc. MPDKN007S	1	2.24 "	1.45 in	0.22 in	56.9 mm	36.8 mm	5.5 mm	15 A	85 °C	-40 °C	50 W	75 V	88 %	1.5 kV	3.3 V	ITE (Commercial)	36 V	Isolated Module	Through Hole	1/4 Brick 8-DIP Module
Murata Power Solutions Inc. MPDKN118S	1	2.24 "	0.86 "	0.35 "	56.9 mm	21.9 mm	9 mm	13 A	85 °C	-40 °C	65 W	75 V	90 %	1.5 kV	5 V	ITE (Commercial)	36 V	Isolated Module	Through Hole	1/8 Brick 8-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 10A 36V - 75V Input
