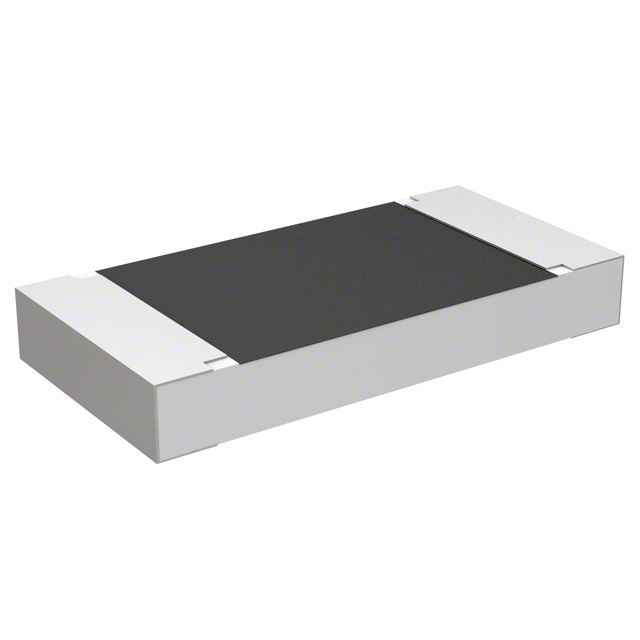

352227RJT

Active

TE Connectivity Passive Product

RES SMD 27 OHM 5% 3W 2512

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

352227RJT

Active

TE Connectivity Passive Product

RES SMD 27 OHM 5% 3W 2512

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	352227RJT

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	3 W
Ratings	AEC-Q200
Resistance	27 Ohms
Size / Dimension	6.35 mm, 3.2 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	0.126 "
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

3522 Series

Part	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Features	Resistance	Ratings	Composition	Number of Terminations	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Power (Watts)	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity Passive Product 3522160RFT	6432 Metric	2512	155 °C	-55 °C	1 %	Automotive AEC-Q200	160 Ohms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 3522330RJT	6432 Metric	2512	155 °C	-55 °C	5 %	Automotive AEC-Q200	330 Ohms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 3522130RFT	6432 Metric	2512	155 °C	-55 °C	1 %	Automotive AEC-Q200		AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 352227RJT	6432 Metric	2512	155 °C	-55 °C	5 %	Automotive AEC-Q200	27 Ohms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	200 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 352291RFT	6432 Metric	2512	155 °C	-55 °C	1 %	Automotive AEC-Q200	91 Ohms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	200 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 35222K2FT	6432 Metric	2512	155 °C	-55 °C	1 %	Automotive AEC-Q200	2200 Ohms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 35221K8JT	6432 Metric	2512	155 °C	-55 °C	5 %	Automotive AEC-Q200	1.8 kOhms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 352227KJT	6432 Metric	2512	155 °C	-55 °C	5 %	Automotive AEC-Q200	27 kOhms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 35223K9JT	6432 Metric	2512	155 °C	-55 °C	5 %	Automotive AEC-Q200	3.9 kOhms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	100 ppm/°C	1.2 mm	0.047 in
TE Connectivity Passive Product 35221R8JT	6432 Metric	2512	155 °C	-55 °C	5 %	Automotive AEC-Q200	1.8 Ohms	AEC-Q200	Thick Film	2	0.25 "	3.2 mm 6.35 mm	0.126 "	3 W	400 ppm/°C	1.2 mm	0.047 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.76
		10	$ 0.46
		50	$ 0.35
		100	$ 0.32
		500	$ 0.27
		1000	$ 0.26
	Digi-Reel®	1	$ 0.76
		10	$ 0.46
		50	$ 0.35
		100	$ 0.32
		500	$ 0.27
		1000	$ 0.26
	Tape & Reel (TR)	2000	$ 0.25
		4000	$ 0.24
		6000	$ 0.24
		10000	$ 0.23
		14000	$ 0.23
		20000	$ 0.23

Description

General part information

3522 Series

27 Ohms ±5% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
