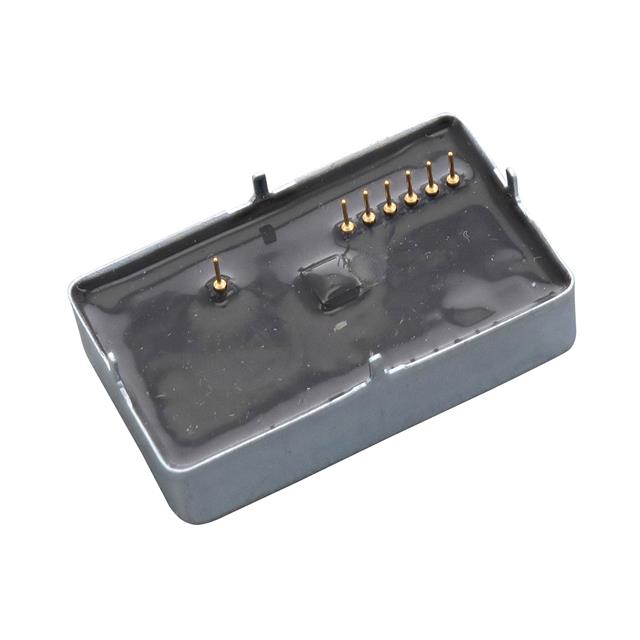

1.5M24-P1

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 1500V 1W

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 1500V 1W

Technical Specifications

Parameters and characteristics for this part

Specification	1.5M24-P1

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active High, Enable
Current - Output (Max) [Max]	670 µA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Package / Case	9-SIP Module, 7 Leads
Size / Dimension [x]	47 mm
Size / Dimension [x]	1.85 in
Size / Dimension [y]	28 mm
Size / Dimension [y]	1.1 in
Size / Dimension [z]	0.49 in
Size / Dimension [z]	12.5 mm
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	26 V
Voltage - Input (Min) [Min]	22 V
Voltage - Output 1	1500 V

Non-Isolated DC/DC Converters M-Series DC to HVDC Converter, Single output (Unipolar), +12V Input, +2,000V HVout, 0.8W, Thru-hole mount, Regulated

Part	Type	Package / Case	Number of Outputs	Mounting Type	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Applications	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Input (Max) [Max]	Control Features	Voltage - Output 1	Voltage - Input (Min) [Min]
ULTRAVOLT / Advanced Energy 2.5M12-N0.8-W
ULTRAVOLT / Advanced Energy 2.5M24-P1-EI-W
ULTRAVOLT / Advanced Energy 2.5M24-N1-W
ULTRAVOLT / Advanced Energy 2M24-P1	High Voltage - Non-Isolated Module	9-SIP Module 7 Leads	1	Through Hole	60950-1	47 mm	1.85 in	0.49 in	28 mm	12.5 mm	1.1 in	ITE (Commercial)	Adjustable Output Remote On/Off	2000 V	0 V	500 µA	-10 °C	65 °C	CE cUL cURus UL	24 V
ULTRAVOLT / Advanced Energy 2.5M24-P1-W
ULTRAVOLT / Advanced Energy 1.5M24-P1	High Voltage - Non-Isolated Module	9-SIP Module 7 Leads	1	Through Hole		47 mm	1.85 in	0.49 in	28 mm	12.5 mm	1.1 in	ITE (Commercial)	SCP			670 µA	-10 °C	65 °C	CE cURus	26 V	Active High Enable	1500 V	22 V
ULTRAVOLT / Advanced Energy 2.5M24-N1-EI-W
ULTRAVOLT / Advanced Energy 2M24-P1-W
ULTRAVOLT / Advanced Energy 1.5M24-N1	High Voltage - Non-Isolated Module	9-SIP Module 7 Leads	1	Through Hole		47 mm	1.85 in	0.49 in	28 mm	12.5 mm	1.1 in	ITE (Commercial)	SCP			670 µA	-10 °C	65 °C	CE cURus	26 V	Active Low Enable	1500 V	22 V
ULTRAVOLT / Advanced Energy 2M12-N0.8-EI-W
