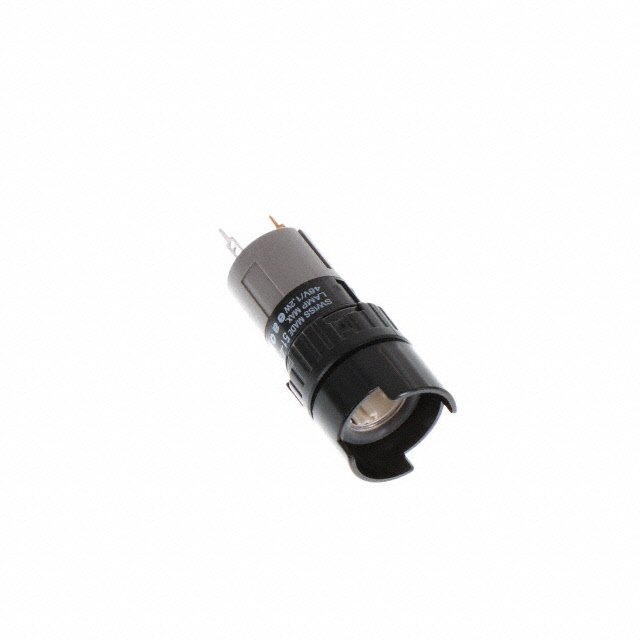

51-475.036
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51-475.036
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-475.036 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-On |
| Termination Style | PC Pin, Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.19 | |
| 10 | $ 26.91 | |||
| 25 | $ 25.37 | |||
| 50 | $ 24.26 | |||
| 100 | $ 23.20 | |||
| 250 | $ 21.86 | |||
Description
General part information
51-475 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
