TCJB686M006R0070

Active

Kyocera AVX

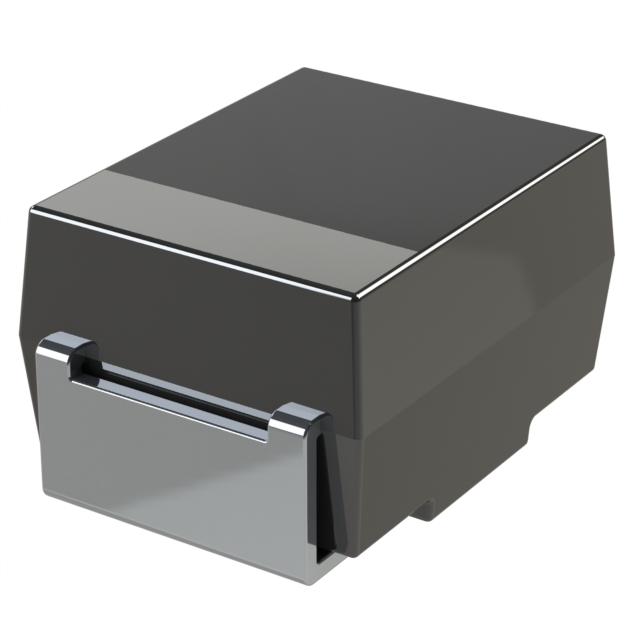

CAP TANT POLY 68UF 6.3V 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Polymer, Tantalum, Niobium Oxide Catalog +1

TCJB686M006R0070

Active

Kyocera AVX

CAP TANT POLY 68UF 6.3V 1210

Deep-Dive with AI

DocumentsDatasheet Polymer, Tantalum, Niobium Oxide Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCJB686M006R0070

Capacitance	68 µF
ESR (Equivalent Series Resistance)	70 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210 (3528 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

TCJB Series

...

Part	Manufacturer Size Code	Type	Capacitance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Tolerance	ESR (Equivalent Series Resistance)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated	Lifetime @ Temp.
Kyocera AVX TCJB106M035R0200E	B	Molded	10 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	200 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	35 V	2000 Hrs
Kyocera AVX TCJB157M006R0070E	B	Molded	150 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	70 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	2000 Hrs
Kyocera AVX TCJB686M006R0055E	B	Molded	68 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	55 mOhm	Surface Mount	125 °C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	2000 Hrs
Kyocera AVX TCJB106M025R0150	B	Molded	10 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	150 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	25 VDC	2000 Hrs
Kyocera AVX TCJB157M002R0070	B	Molded	150 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	70 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	2.5 V	2000 Hrs
Kyocera AVX TCJB686M006R0070	B	Molded	68 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	70 mOhm	Surface Mount	125 °C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	2000 Hrs
Kyocera AVX TCJB107M006R0055	B	Molded	100 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	55 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	2000 Hrs
Kyocera AVX TCJB227M002R0070	B	Molded	220 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	70 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	2.5 V	2000 Hrs
Kyocera AVX TCJB157M006R0035E	B	Molded	150 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	35 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	2000 Hrs
Kyocera AVX TCJB156M025R0150E	B	Molded	15 µF	1210 (3528 Metric)	2.1 mm	0.083 "	General Purpose	20 %	150 mOhm	Surface Mount	105 ░C	-55 °C	0.11 in	2.8 mm	0.138 "	3.5 mm	25 VDC	2000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.97
		10	$ 0.70
		50	$ 0.61
		100	$ 0.50
		500	$ 0.41
		1000	$ 0.35
	Digi-Reel®	1	$ 0.97
		10	$ 0.70
		50	$ 0.61
		100	$ 0.50
		500	$ 0.41
		1000	$ 0.35
	Tape & Reel (TR)	2000	$ 0.28

Description

General part information

TCJB Series

68 µF Molded Tantalum Polymer Capacitor 6.3 V 1210 (3528 Metric) 70mOhm @ 100kHz
