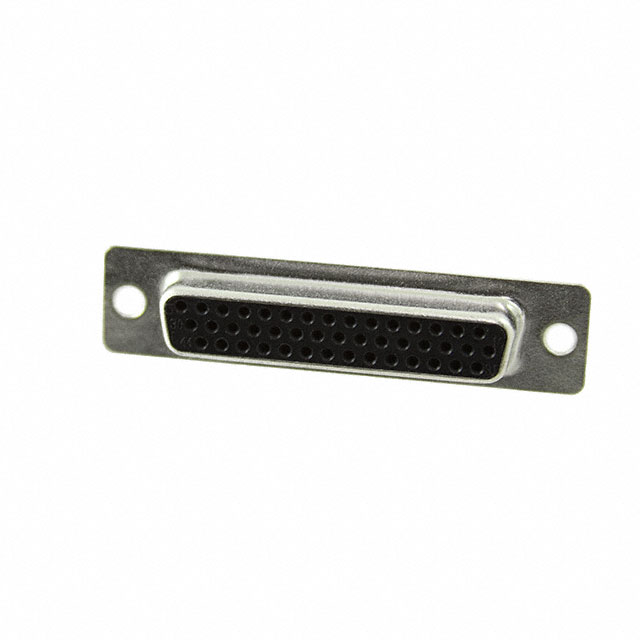

HDT44-SD

Active

Adam Tech

CONN D-SUB HD RCPT 44P SLDR CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN D-SUB HD RCPT 44P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HDT44-SD

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	44
Number of Rows	3
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Voltage Rating	250 VAC

Part	Mounting Type	Material Flammability Rating	Contact Material	Dielectric Material	Color	Number of Rows	Number of Positions	Flange Feature	Connector Style	Current Rating (Amps)	Contact Finish	Connector Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Finish Thickness	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features
Adam Tech HDT44-SD	Free Hanging (In-Line)	UL94 V-0	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	3	44	Housing/Shell (Unthreaded)	D-Sub High Density	3 A	Gold	Receptacle Female Sockets	3	B DB	250 VAC
Adam Tech HDT44-ST	Through Hole	UL94 V-0	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	3	44	Housing/Shell (Unthreaded)	D-Sub High Density	3 A	Gold	Receptacle Female Sockets	3	B DB	250 VAC	Flash	Solder
Adam Tech HDT44-SR	Free Hanging (In-Line)			Polybutylene Terephthalate (PBT) Glass Filled	Black		44	Housing/Shell (Unthreaded)	D-Sub High Density			Receptacle Female Sockets	3	B DB
Adam Tech HDT44-SD-JS	Free Hanging (In-Line)	UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	Black	3	44	Female Screwlock (4-40) Mating Side	D-Sub High Density	5 A	Gold	Receptacle Female Sockets	3	B DB	250 VAC	Flash		125 °C	-65 ░C
Adam Tech HDT44-PR	Free Hanging (In-Line)			Polybutylene Terephthalate (PBT) Glass Filled	Black		44	Housing/Shell (Unthreaded)	D-Sub High Density			Plug for Male Contacts	3	B DB				125 °C	-65 ░C	Grounding Indents
