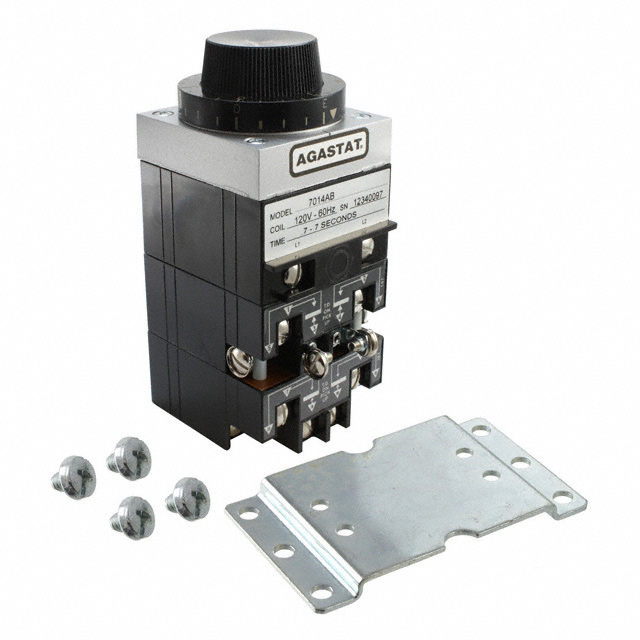

7014AB
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 7SEC 10A 240V
Deep-Dive with AI
Search across all available documentation for this part.
7014AB
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 7SEC 10A 240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7014AB |
|---|---|
| Circuit | 4 Form C |
| Circuit | 4PDT |
| Contact Rating @ Voltage | 10 A, 240 VAC |
| Delay Time [Max] | 7 Sec |
| Delay Time [Min] | 0.7 Sec |
| Function | On-Delay |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 880.48 | |
| 10 | $ 867.44 | |||
Description
General part information
1423160 Series
On-Delay Time Delay Relay 4PDT (4 Form C) 0.7 Sec ~ 7 Sec Delay 10A @ 240VAC Panel Mount
