PSC22CB
ActiveTusonix a Subsidiary of CTS Electronic Components

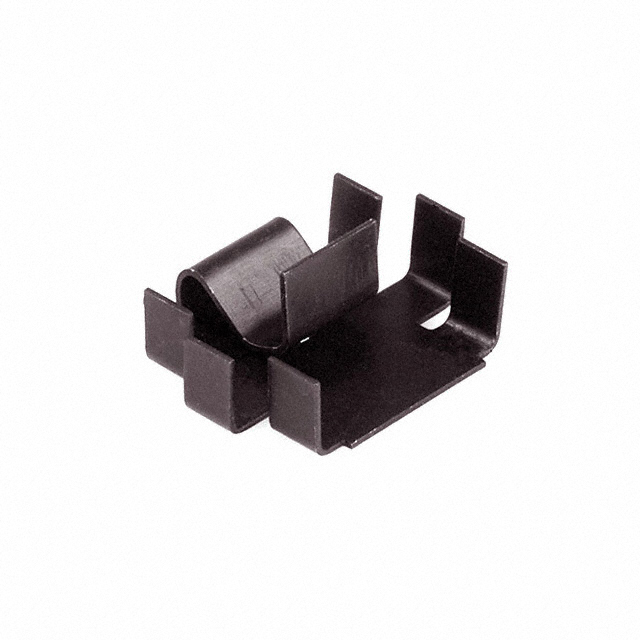

HEATSINK CLIP ON BLACK TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSC22CB
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK CLIP ON BLACK TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSC22CB |
|---|---|
| Attachment Method | Clip |
| Fin Height [z] | 7.87 mm |
| Fin Height [z] | 0.31 in |
| Length [x] | 20.57 mm |
| Length [x] | 0.81 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 41.7 °C/W |
| Type | Board Level |
| Width | 25.4 mm |
| Width [x] | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 1.69 | |
Description
General part information
PSC22 Series
Heat Sink TO-220 Aluminum Board Level
