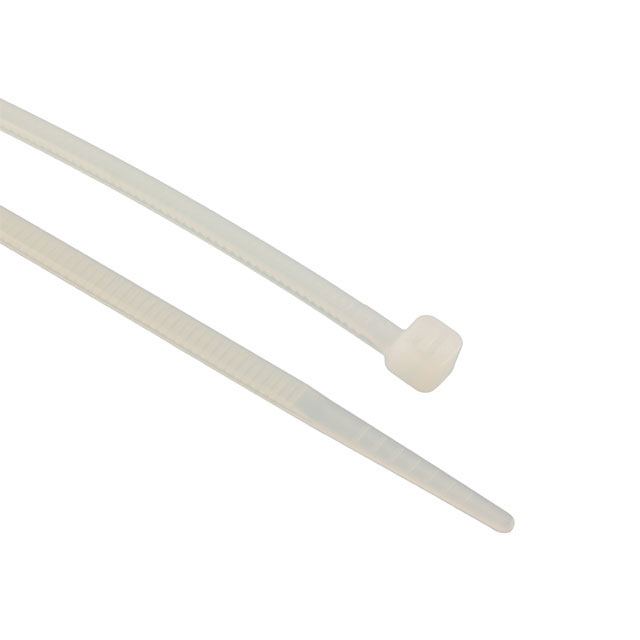

WITA-18SF-M
ActiveEssentra Access Solutions
CBL TIE LOCKING NAT 18LBS 3.85"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WITA-18SF-M
ActiveEssentra Access Solutions
CBL TIE LOCKING NAT 18LBS 3.85"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WITA-18SF-M |
|---|---|
| Bundle Diameter [diameter] | 0.87 in |
| Bundle Diameter [diameter] | 22.1 mm |
| Color | Natural |
| Length - Actual [x] | 0.321 ft |
| Length - Actual [x] | 3.85 " |
| Length - Actual [x] | 97.79 mm |
| Length - Approximate | 3.75 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 18 lbs |
| Tensile Strength | 8.16 kg |
| Width [x] | 0.098 in |
| Width [x] | 2.5 mm |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.03 | |
| 2000 | $ 0.03 | |||
| 3000 | $ 0.03 | |||
| 5000 | $ 0.02 | |||
| 10000 | $ 0.02 | |||
| 25000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
Description
General part information
WITA-1 Series
Standard, Locking Natural 0.87" (22.10mm) 0.098" (2.50mm) 18 lbs (8.16 kg)
Documents
Technical documentation and resources
