SRR0603-220ML

Active

Bourns Inc.

INDUCTOR,FERRITE,22UH,20+% TOL,20-% TOL,2626-CASE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR,FERRITE,22UH,20+% TOL,20-% TOL,2626-CASE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR)	Frequency - Self Resonant	Current - Saturation (Isat)	Tolerance	Inductance	Type	Shielding	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]

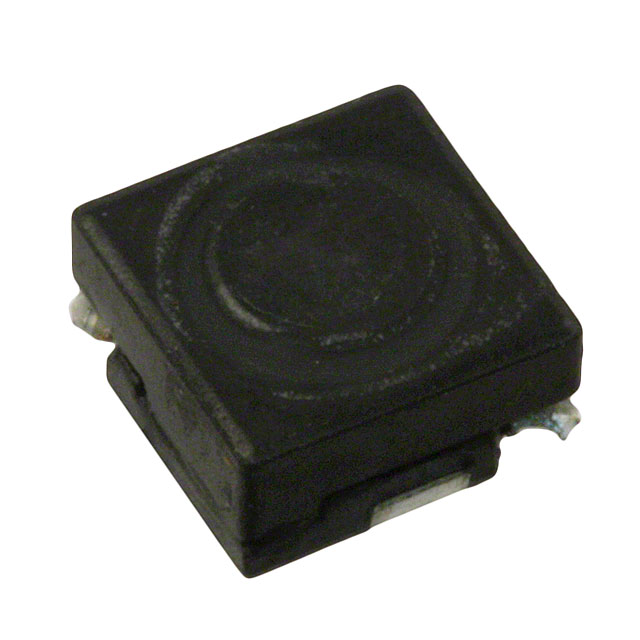

Bourns Inc. SRR0603-220ML	270 mOhm	20 MHz	1.05 A	20 %	22 µH	Drum Core Wirewound	Shielded	2.52 MHz 16	125 °C	-40 °C	Ferrite	Surface Mount	700 mA	0.13 "	3.3 mm	6.5 mm	0.256 in	6.5 mm	0.256 "
Bourns Inc. SRR0603-4R7ML		45 MHz	2.2 A	20 %	4.7 ÁH	Drum Core Wirewound	Shielded	7.96 MHz 13	125 °C	-40 °C	Ferrite	Surface Mount	1.6 A	0.13 "	3.3 mm	6.5 mm	0.256 in	6.5 mm	0.256 "	70 mOhm
Bourns Inc. SRR0603-150ML	180 mOhm	25 MHz	1.2 A	20 %	15 µH	Drum Core Wirewound	Shielded	2.52 MHz 16	125 °C	-40 °C	Ferrite	Surface Mount	900 mA	0.13 "	3.3 mm	6.5 mm	0.256 in	6.5 mm	0.256 "
Bourns Inc. SRR0603-330KL		16 MHz	830 mA	10 %	33 µH	Drum Core Wirewound	Shielded	2.52 MHz 15	125 °C	-40 °C	Ferrite	Surface Mount	600 mA	0.13 "	3.3 mm	6.5 mm	0.256 in	6.5 mm	0.256 "	430 mOhm
Bourns Inc. SRR0603-470YL		13 MHz	730 mA	15 %	47 µH	Drum Core Wirewound	Shielded	2.52 MHz 13	125 °C	-40 °C	Ferrite	Surface Mount	0.5 A	0.13 "	3.3 mm	6.5 mm	0.256 in	6.5 mm	0.256 "	550 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µH Shielded Drum Core, Wirewound Inductor 700 mA 270mOhm Max Nonstandard, Corner Terminals
