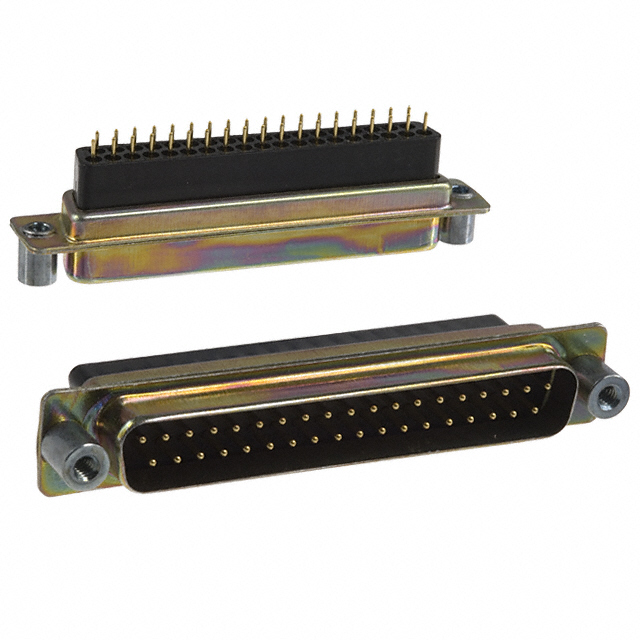

172-037-181-031

Obsolete

MH Connectors

CONN D-SUB PLUG 37P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

172-037-181-031

Obsolete

MH Connectors

CONN D-SUB PLUG 37P PNL MNT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-037-181-031

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

172-037 Series

Part	Connector Type	Contact Finish Thickness	Termination	Material Flammability Rating	Connector Style	Dielectric Material	Flange Feature	Contact Material	Number of Positions	Number of Rows	Color	Shell Size, Connector Layout	Contact Finish	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Contact Type	Features	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 172-037-283L001	Receptacle Female Sockets	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	Housing/Shell (Unthreaded)	Brass	37	2	Black	4 (DC C)	Gold	Nickel Plated Steel	-50 °C	125 °C	5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-181-001	Male Pins Plug	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	Housing/Shell (Unthreaded)		37	2		4 (DC C)	Gold	Steel Yellow Chromate Plated			5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-112-021	Male Pins Plug	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	4-40 Board Side		37	2	Black	4 (DC C)	Gold				5 A	Panel Mount Through Hole	Signal	Grounding Indents
MH Connectors 172-037-282-021	Receptacle Female Sockets	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	4-40 Board Side		37	2		4 (DC C)	Gold				5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-102R031	Male Pins Plug	Flash		UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	4-40	Brass	37	2	Beige	4 (DC C)	Gold				5 A		Signal	Grounding Indents	20 AWG	26 AWG
MH Connectors 172-037-181-031	Male Pins Plug	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	4-40		37	2		4 (DC C)	Gold	Steel Yellow Chromate Plated			5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-281-001	Receptacle Female Sockets	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	Housing/Shell (Unthreaded)		37	2		4 (DC C)	Gold	Steel Yellow Chromate Plated			5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-242R011	Receptacle Female Sockets	Flash	Wire Wrap	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Polyester	4-40 Board Side	Brass	37	2	Beige	4 (DC C)	Gold				5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-281L011	Receptacle Female Sockets	Flash	Solder	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT)	4-40 Board Side	Brass	37	2	Black	4 (DC C)	Gold	Steel Yellow Chromate Plated	-50 °C	125 °C	5 A	Panel Mount Through Hole	Signal
MH Connectors 172-037-242R031	Receptacle Female Sockets	Flash	Wire Wrap	UL94 V-0	D-Sub	Polybutylene Terephthalate (PBT) Polyester	4-40	Brass	37	2	Beige	4 (DC C)	Gold				5 A	Panel Mount Through Hole	Signal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-037 Series

37 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
