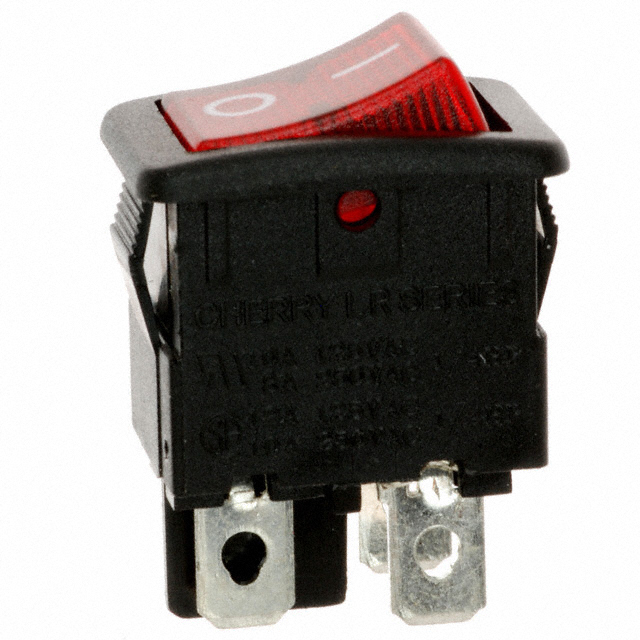

LRA32H2FBRLN
ActiveZF Electronics
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
LRA32H2FBRLN
ActiveZF Electronics
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LRA32H2FBRLN |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | CE, cULus, VDE |
| Circuit | DPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, Neon |
| Illumination Voltage (Nominal) | 125 VAC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.1 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.15 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.82 | |||
| 50 | $ 1.73 | |||
| 100 | $ 1.65 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.41 | |||
Description
General part information
LRA32H2F Series
Rocker Switch DPST 10A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
