25013 BK005

Active

ALPHA WIRE

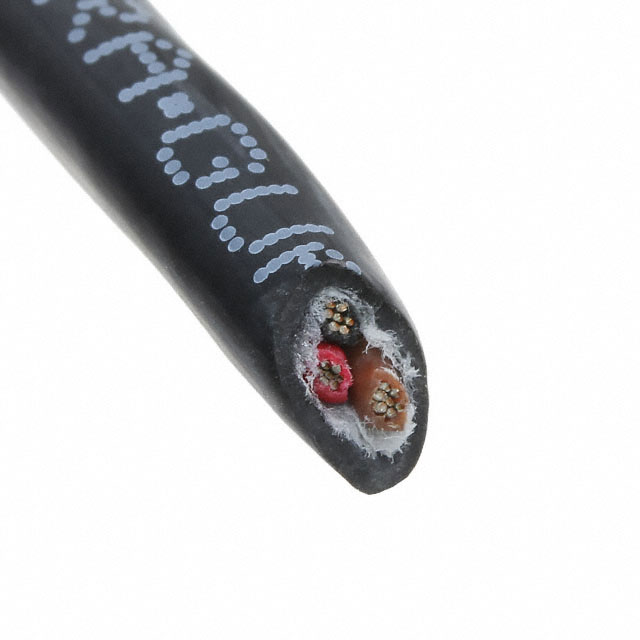

CABLE 3COND 24AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 24AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25013 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	4.14 mm
Jacket (Insulation) Diameter [diameter]	0.163 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type	Features	Jacket (Insulation) Material	Ratings	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket Color	Length	Length
ALPHA WIRE 25013 BK005	4.14 mm	0.163 in	3	Multi-Conductor	Biological Compatibility Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	24 AWG	30.5 m	100 ft	32 AWG	7	Poly-Vinyl Chloride (PVC)	300 V	-30 ░C	90 °C	Copper Tinned	Black
ALPHA WIRE 25013 SL199	4.14 mm	0.163 in	3	Multi-Conductor	Biological Compatibility Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	24 AWG			32 AWG	7	Poly-Vinyl Chloride (PVC)	300 V	-30 ░C	90 °C	Copper Tinned	Slate	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 24 AWG 100.0' (30.5m)
