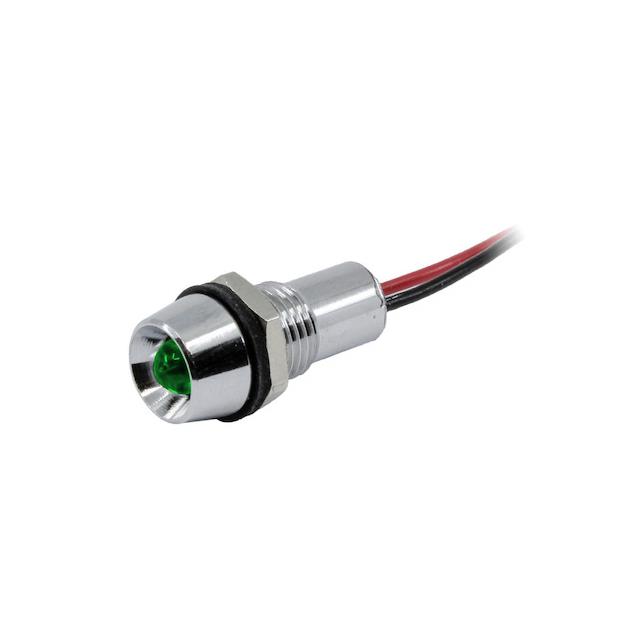

PMRL200W-BCR24H-WT

Active

Visual Communications Company - VCC

PMI 5-3-17 WT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PMRL200W-BCR24H-WT

Active

Visual Communications Company - VCC

PMI 5-3-17 WT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PMRL200W-BCR24H-WT

Current	17 mA
Lamp Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Millicandela Rating	120 mcd
Panel Cutout Dimensions [x]	7.92 mm
Panel Cutout Dimensions [x]	0.31 in
Panel Cutout Shape	Round
Type	LED
Viewing Angle	35 °
Voltage	24 V
Wavelength - Peak	635 nm

PMRL200 Series

Part	Viewing Angle	Wavelength - Peak	Panel Cutout Shape	Millicandela Rating	Lens Size	Lens Size	Type	Lens Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Current	Lamp Color	Voltage	Ratings	Termination Style	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
Visual Communications Company - VCC PMRL200W-BG24H-WT	60 °	565 nm	Round	80 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	17 mA	Green	24 V
Visual Communications Company - VCC PMRL200W-NWR120-WT	30 °	634 nm	Round	2800 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	3.5 mA	Red	120 V	AC
Visual Communications Company - VCC PMRL200W-BCR24H-WT	35 °	635 nm	Round	120 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	17 mA	Red	24 V
Visual Communications Company - VCC PMRL200W-NWR24H-WT	30 °	634 nm	Round	2800 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	17 mA	Red	24 V
Visual Communications Company - VCC PMRL200W-BCG24H-WT	24 °	565 nm	Round	80 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	17 mA	Green	24 V
Visual Communications Company - VCC PMRL200W-BG5H-WT	60 °	565 nm	Round	80 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	22 mA	Green	5 V
Visual Communications Company - VCC PMRL200W24-BG2-WT
Visual Communications Company - VCC PMRL200W-BCA2-WT	35 °	583 nm	Round	100 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in		Amber	2 V	DC
Visual Communications Company - VCC PMRL200-BA24H-WT	60 °	583 nm	Round	100 mcd	T-1 3/4	5 mm	LED	Round with Domed Top			17 mA	Amber	24 V	DC	PC Pin	0.31 in	7.87 mm
Visual Communications Company - VCC PMRL200-BG15H	60 °	565 nm	Round	80 mcd	T-1 3/4	5 mm	LED	Round with Domed Top	7.92 mm	0.31 in	24 mA	Green	15 V		PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.31
		25	$ 17.59
		100	$ 14.77
		500	$ 13.57

Description

General part information

PMRL200 Series

LED Panel Indicator Red 35° 24V 17mA Wire Leads - 6" (152.40mm)
