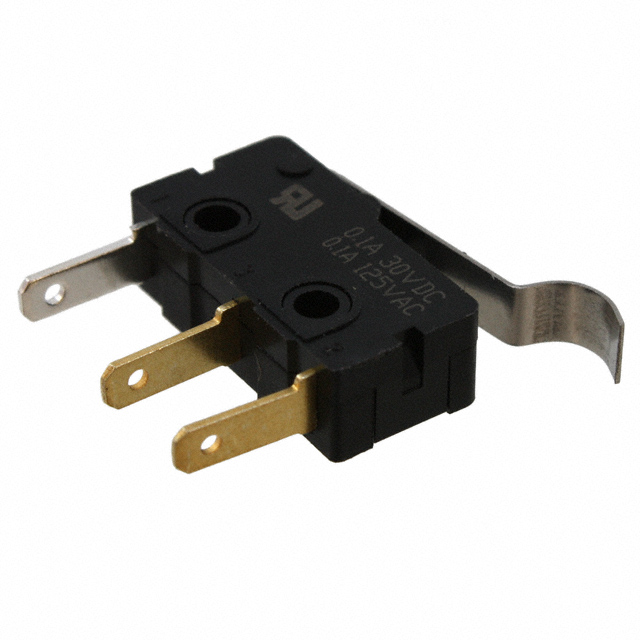

ZM10B70E01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Differential Travel	Differential Travel	Circuit	Current Rating (Amps)	Pretravel	Pretravel	Overtravel	Overtravel	Ingress Protection	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - AC	Actuator Type	Termination Style	Operating Force	Mounting Type	Operating Position	Operating Position	Voltage Rating - DC	Electrical Life	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZM10B70C01	2 gf	0.8 mm	0.031 "	SPDT	100 mA	4 mm	0.157 in	0.024 in	0.6 mm	IP40	1000000 Cycles	125 °C	-40 °C	On-Mom	125 V	Lever Straight	Quick Connect - 0.110" (2.8mm)	14 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions ZM10B70E01	3 gf			SPDT	100 mA	5.2 mm	0.205 in	0.025 "	0.6 mm		10000000 Cycles	120 °C	-40 °C	On-Mom	125 V	Lever Simulated Roller	Quick Connect - 0.110" (2.8mm)	16 gf	Chassis Mount	15.1 mm	0.594 "	30 V	10000 Cycles
Honeywell Sensing and Productivity Solutions ZM10D20D01				SPDT	100 mA	6.1 mm	0.24 in	0.03 in	0.76 mm		10000000 Cycles	120 °C	-40 °C	On-Mom	125 V	Lever Straight	PC Pin	20 gf	Through Hole			30 V	10000 Cycles	0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZM10D10D01				SPDT	100 mA	6.1 mm	0.24 in	0.03 in	0.76 mm		10000000 Cycles	120 °C	-40 °C	On-Mom	125 V	Lever Straight	Solder Lug	20 gf	Chassis Mount			30 V	10000 Cycles	0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZM10D10E01				SPDT	100 mA	5.2 mm	0.205 in	0.024 in	0.6 mm	IP40	1000000 Cycles	125 °C	-40 °C	On-Mom	125 V	Lever Simulated Roller	Solder Lug	26 gf	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.96

General part information

Switch SPDT Chassis Mount
