1441-26

Active

Hammond Manufacturing

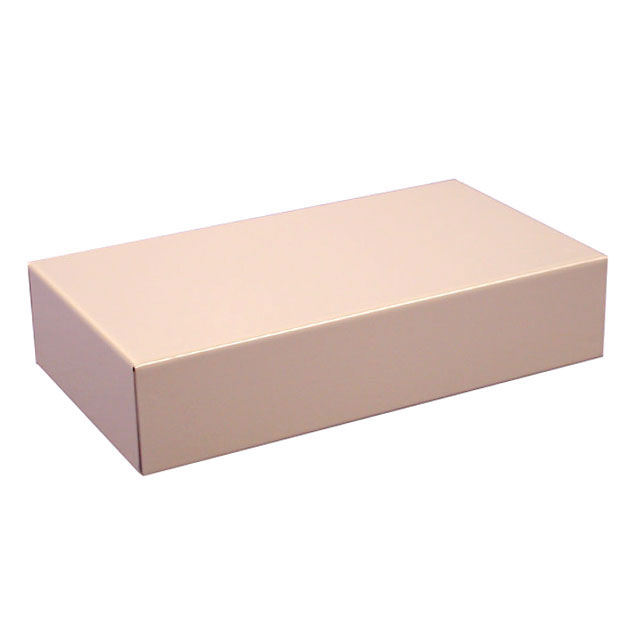

CHASSIS STEEL GRAY 16"L X 8"W

Deep-Dive with AI

Search across all available documentation for this part.

1441-26

Active

Hammond Manufacturing

CHASSIS STEEL GRAY 16"L X 8"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1441-26

Area (L x W) [custom]	128 in²
Area (L x W) [custom]	826 cm²
Color	Gray
Container Type	Chassis
Design	Open End(s)
Features	Hardware not Provided
Height [z]	51.82 mm
Height [z]	2.04 in
Material	Metal, Steel
Size / Dimension [x]	406.4 mm
Size / Dimension [x]	16 in
Size / Dimension [y]	203.2 mm
Size / Dimension [y]	8 in
Thickness	20
Weight	2.6 lbs
Weight	1.2 kg

1441 Series

Part	Area (L x W)	Area (L x W)	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Design	Thickness	Color	Height [z]	Height [z]	Features	Container Type	Material	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]	Size / Dimension [x]	Weight	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Size / Dimension [y]
Hammond Manufacturing 1441-24BK3	96 in˛	619 cm˛	1 kg	2.3 lbs	12 in	8 in	304.8 mm	203.2 mm	Open End(s)	20	Black	77.22 mm	3.04 in	Hardware not Provided	Chassis	Metal Steel
Hammond Manufacturing 1441-33	170 in²	1097 cm˛	1.9 kg	4.1 lbs	17 in	10 in	431.8 mm	254 mm	Open End(s)	20	Gray	102.62 mm	4.04 in	Hardware not Provided	Chassis	Metal Steel
Hammond Manufacturing 1441-26			1.2 kg	2.6 lbs	16 in	8 in	406.4 mm	203.2 mm	Open End(s)	20	Gray	51.82 mm	2.04 in	Hardware not Provided	Chassis	Metal Steel	128 in²	826 cm²
Hammond Manufacturing 1441-22BK3CWW	94.5 in˛	610 cm˛					302.97 mm	201.37 mm	Open End(s)	20	Black	48.97 mm	1.928 in		Chassis	Metal Steel Wood			7.928 "	11.928 "
Hammond Manufacturing 1441-15BK3	60 in²	387 cm²	499 g	1.1 lbs	10 in	6 "	254 mm	152.4 mm	Open End(s)	20	Black	26.42 mm	1.04 in	Hardware not Provided	Chassis	Metal Steel
Hammond Manufacturing 1441-6	16 in˛	103 cm˛	249.48 g	0.55 lb	4 in	4 "	101.6 mm	101.6 mm	Open End(s)	20	Gray	51.82 mm	2.04 in	Hardware not Provided	Chassis	Metal Steel
Hammond Manufacturing 1441-38BK3			5.8 lbs		17 in	14 in	431.8 mm	355.6 mm	Open End(s)		Black	77.22 mm	3.04 in	Hardware not Provided	Chassis	Metal Steel					2.6 kg	238 in²	1535 cm²	18 Gauge
Hammond Manufacturing 1441-8BK3			342.92 g	0.756 lb	6 in	4 "	152.4 mm		Open End(s)	20	Black	51.82 mm	2.04 in	Hardware not Provided	Chassis	Metal Steel	24 in²	155 cm²							101.6 mm
Hammond Manufacturing 1441-42BK3			4.5 kg	10 lbs	17 in	14 in	431.8 mm	355.6 mm	Open End(s)		Black	127 mm	5 in	Hardware not Provided	Chassis	Metal Steel						238 in²	1535 cm²	18 Gauge
Hammond Manufacturing 1441-42			4.5 kg	10 lbs	17 in	14 in	431.8 mm	355.6 mm	Open End(s)		Gray	127 mm	5 in	Hardware not Provided	Chassis	Metal Steel						238 in²	1535 cm²	18 Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.82
		5	$ 37.48
		10	$ 35.13
		25	$ 32.79
		50	$ 32.21
		100	$ 31.62
		250	$ 31.15

Description

General part information

1441 Series

Chassis Metal, Steel Gray Open End(s) 16.000" L x 8.000" W (406.40mm x 203.20mm) X 2.040" (51.82mm)
