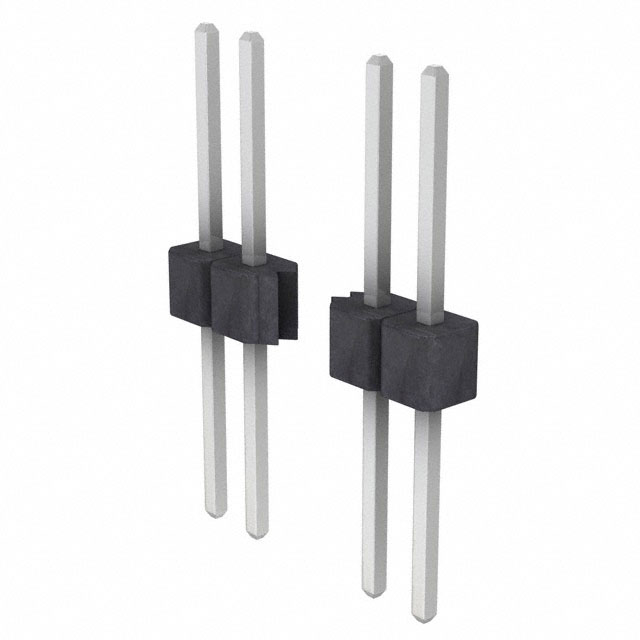

PTC32SFCN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC32SFCN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC32SFCN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.738 "
Overall Contact Length	18.75 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC32 Series

Part	Contact Finish - Post	Contact Material	Pitch - Mating	Pitch - Mating	Style	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Current Rating (Amps)	Number of Rows	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Mounting Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PTC32DBEN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder	2.54 mm	0.1 in	Square	Push-Pull	0.24 in	6.1 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header	13.21 mm	0.52 "	UL94 V-0	3 A	2	All	0.23 in	5.84 mm	2.54 µm	100 µin	64	Black	Through Hole Right Angle	Unshrouded
Sullins Connector Solutions PTC32SFCN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder			Square	Push-Pull	0.1 in	2.54 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header			UL94 V-0	3 A	1	All	0.318 "		2.54 µm	100 µin		Black	Through Hole	Unshrouded	0.32 in	8.13 mm	0.738 "	18.75 mm	8.08 mm
Sullins Connector Solutions PTC32SGAN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder			Square	Push-Pull	0.14 in	3.56 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header			UL94 V-0	3 A	1	All	0.318 "		2.54 µm	100 µin		Black	Through Hole Right Angle	Unshrouded	0.12 in	3.05 mm			8.08 mm
Sullins Connector Solutions PTC32SBEN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder			Square	Push-Pull	0.14 in	3.56 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header	13.21 mm	0.52 "	UL94 V-0	3 A	1	All	0.23 in	5.84 mm	2.54 µm	100 µin		Black	Through Hole Right Angle	Unshrouded
Sullins Connector Solutions PTC32DBBN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder	2.54 mm	0.1 in	Square	Push-Pull	0.24 in	6.1 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header	5.84 mm	0.23 in	UL94 V-0	3 A	2	All	0.23 in	5.84 mm	2.54 µm	100 µin	64	Black	Through Hole Right Angle	Unshrouded
Sullins Connector Solutions PTC32DFBN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder	2.54 mm	0.1 in	Square	Push-Pull	0.1 in	2.54 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header	5.58 mm	0.22 in	UL94 V-0	3 A	2	All	0.318 "		2.54 µm	100 µin	64	Black	Through Hole	Unshrouded			0.638 in	16.21 mm	8.08 mm
Sullins Connector Solutions PTC32DAHN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder	2.54 mm	0.1 in	Square	Push-Pull	0.1 in	2.54 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header			UL94 V-0	3 A	2	All	0.23 in	5.84 mm	2.54 µm	100 µin	64	Black	Through Hole	Unshrouded	0.82 in	20.83 mm	1.15 in	29.21 mm
Sullins Connector Solutions PTC32SBAN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder			Square	Push-Pull	0.14 in	3.56 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header			UL94 V-0	3 A	1	All	0.23 in	5.84 mm	2.54 µm	100 µin		Black	Through Hole Right Angle	Unshrouded	0.12 in	3.05 mm
Sullins Connector Solutions PTC32DBCN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder	2.54 mm	0.1 in	Square	Push-Pull	0.24 in	6.1 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header			UL94 V-0	3 A	2	All	0.23 in	5.84 mm	2.54 µm	100 µin	64	Black	Through Hole Right Angle	Unshrouded	0.32 in	8.13 mm
Sullins Connector Solutions PTC32DAGN	Tin	Copper Alloy	0.1 in	2.54 mm	Board to Board Cable	Solder	2.54 mm	0.1 in	Square	Push-Pull	0.1 in	2.54 mm	Polyester Thermoplastic	Male Pin	2.54 çm	100 çin	Header			UL94 V-0	3 A	2	All	0.23 in	5.84 mm	2.54 µm	100 µin	64	Black	Through Hole	Unshrouded	0.72 "	18.29 mm	1.05 in	26.67 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC32 Series

Connector Header Through Hole 32 position 0.100" (2.54mm)
