LHA-12-TS

Active

Adam Tech

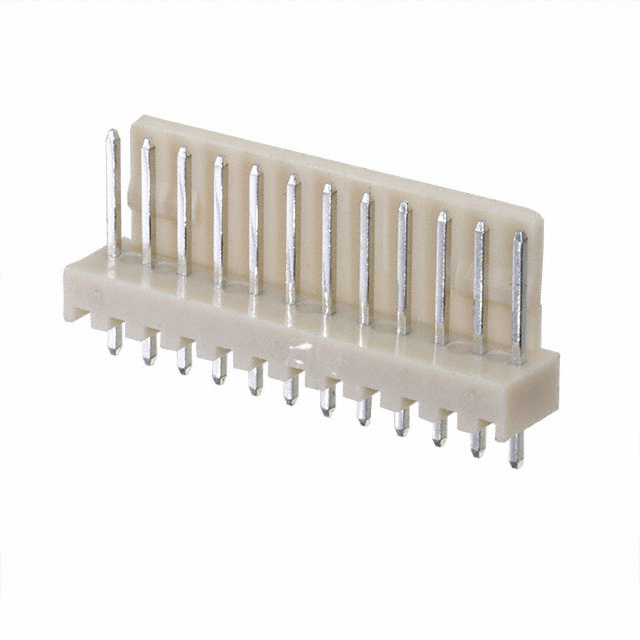

CONN HEADER VERT 12POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-12-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.291 in
Contact Length - Mating	7.4 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Ivory
Insulation Height	0.134 in
Insulation Height	3.4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Style	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Post	Fastening Type	Current Rating (Amps)	Contact Type	Shrouding	Voltage Rating	Termination	Insulation Color	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Mounting Type
Adam Tech LHA-12-TS	Board to Cable/Wire	Brass	0.134 in	3.4 mm	14.2 mm	0.559 in	1	-25 °C	85 °C	Square	Tin	Friction Lock	3 A	Male Pin	Shrouded - 1 Wall	250 VAC	Solder	Ivory	0.134 in	3.4 mm	UL94 V-2	12	All	0.291 in	7.4 mm	Header	0.1 in	2.54 mm	Nylon Polyamide (PA)	Through Hole
Adam Tech LHA-12-TRB	Board to Cable/Wire	Brass	0.134 in	3.4 mm			1	-25 °C	85 °C	Square	Tin	Friction Lock	3 A	Male Pin	Shrouded - 1 Wall	250 VAC	Solder	White	0.228 in	5.8 mm	UL94 V-2	12	All	0.293 in	7.45 mm	Header	0.1 in	2.54 mm	Polyamide (PA66) Nylon 6/6	Through Hole Right Angle
Adam Tech LHA-12-TRA	Board to Cable/Wire	Brass	0.134 in	3.4 mm			1	-40 °C	105 ░C	Square	Tin	Friction Lock	3 A	Male Pin	Shrouded - 1 Wall	250 VAC	Solder	White	0.228 in	5.8 mm	UL94 V-2	12	All	0.276 in	7 mm	Header	0.1 in	2.54 mm	Polyamide (PA66) Nylon 6/6	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.100" (2.54mm)
