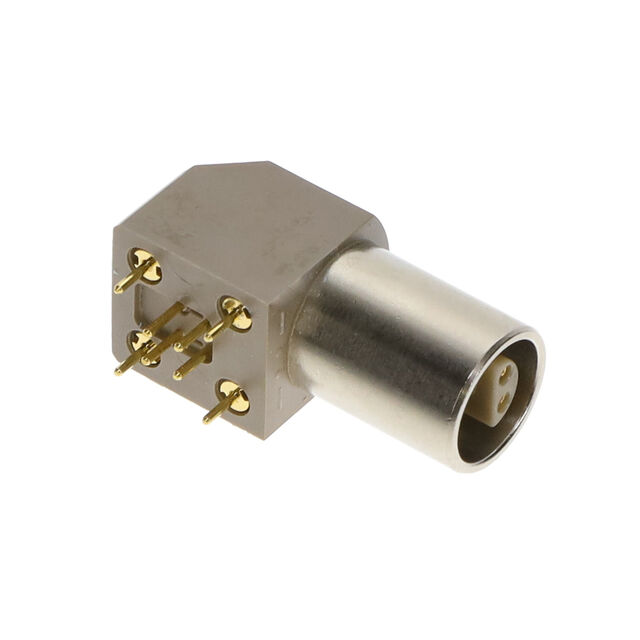

EPL.1S.304.HLN

Active

LEMO

CONN CIRC RCPT 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN CIRC RCPT 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EPL.1S.304.HLN

Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Material	Bronze, Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

Part	Connector Type	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Primary Material	Fastening Type	Shell Finish	Contact Finish - Mating	Mounting Type	Ingress Protection	Contact Material	Insert Material	Shielding	Orientation	Shell Material	Shell Size - Insert	Impedance	Connector Style	Housing Color	Dielectric Material	Center Contact Material	Contact Termination	Mating Cycles	Body Material	Cable Group	Center Contact Plating	Shield Termination	Body Finish
LEMO EPL.1S.304.HLN	Female Sockets Male Pins Receptacle	UL94 V-0	6 A	4	Solder	-55 °C	250 °C	Ground	Metal	Push-Pull	Nickel	Gold	Through Hole Right Angle	IP50	Brass Bronze	Polyetheretherketone (PEEK)	Shielded	Keyed	Brass and Polyphenylene Sulfide (PPS)	304
LEMO EPL.1S.306.HLN	Female Sockets Male Pins Receptacle	UL94 V-0	6 A	6	Solder	-55 °C	250 °C	Ground	Metal	Push-Pull	Nickel	Gold	Through Hole Right Angle	IP50	Brass Bronze	Polyetheretherketone (PEEK)	Shielded	Keyed	Brass and Polyphenylene Sulfide (PPS)	306
LEMO EPL.1S.275.NTN	Female Socket Receptacle					-55 °C	250 °C			Push-Pull			Through Hole Right Angle	IP50							75 Ohms	Coaxial	Silver	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	1000	Brass	179B 187A 223 302 400 59B RG-58C	Gold	Solder	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.79

General part information

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder
