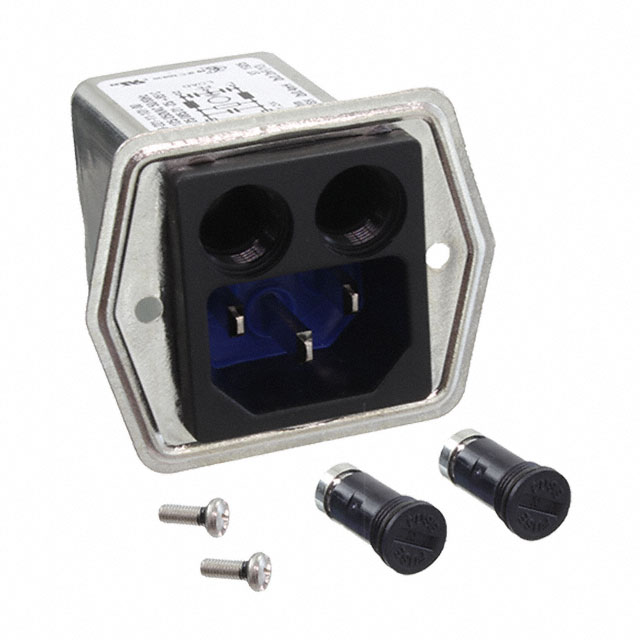

5707.0801.312.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5707.0801.312.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5707.0801.312.01

Accomodates a Fuse	True
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	8 A
Features	Shielded
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP54
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	32.2 mm
Panel Cutout Dimensions [y]	29.2 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

5707.0801 Series

Part	Termination	Termination	Termination	Ingress Protection	Features	Material Flammability Rating	Mounting Type	Filter Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Connector Type	Approval Agency	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Panel Thickness	Panel Thickness
SCHURTER Inc. 5707.0801.313	0.25 in	6.3 mm	Quick Connect	IP65 - Dust Tight Water Resistant	Shielded	UL94 V-0	Flange Panel Mount	Filtered (EMI RFI) - Commercial	8 A	250 VAC	Fuse Holder	Male Blades Receptacle	cULus ENEC	IEC 320-C14	36 mm	33.5 mm	8 A
SCHURTER Inc. 5707.0801.312.01	0.25 in	6.3 mm	Quick Connect	IP54	Shielded	UL94 V-0	Flange Panel Mount	Unfiltered - Commercial	8 A	250 VAC	Fuse Holder	Receptacle Male Blades - Module	cURus ENEC	IEC 320-C14	32.2 mm	29.2 mm		3 mm	0.118 in
SCHURTER Inc. 5707.0801.312	0.25 in	6.3 mm	Quick Connect	IP65 - Dust Tight Water Resistant	Shielded	UL94 V-0	Flange Panel Mount	Filtered (EMI RFI) - Commercial	8 A	250 VAC	Fuse Holder	Male Blades Receptacle	cULus ENEC	IEC 320-C14	36 mm	32.2 mm	8 A
SCHURTER Inc. 5707.0801.112	0.25 in	6.3 mm	Quick Connect	IP65 - Dust Tight Water Resistant	Shielded	UL94 V-0	Flange Panel Mount	Filtered (EMI RFI) - Commercial	8 A	250 VAC	Fuse Holder	Male Blades Receptacle	cULus ENEC	IEC 320-C14	36 mm	32.2 mm	8 A
SCHURTER Inc. 5707.0801.113	0.25 in	6.3 mm	Quick Connect	IP65 - Dust Tight Water Resistant	Shielded	UL94 V-0	Flange Panel Mount	Filtered (EMI RFI) - Commercial	8 A	250 VAC	Fuse Holder	Male Blades Receptacle	cULus ENEC	IEC 320-C14	36 mm	33.5 mm	8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.38
		50	$ 26.75

Description

General part information

5707.0801 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
