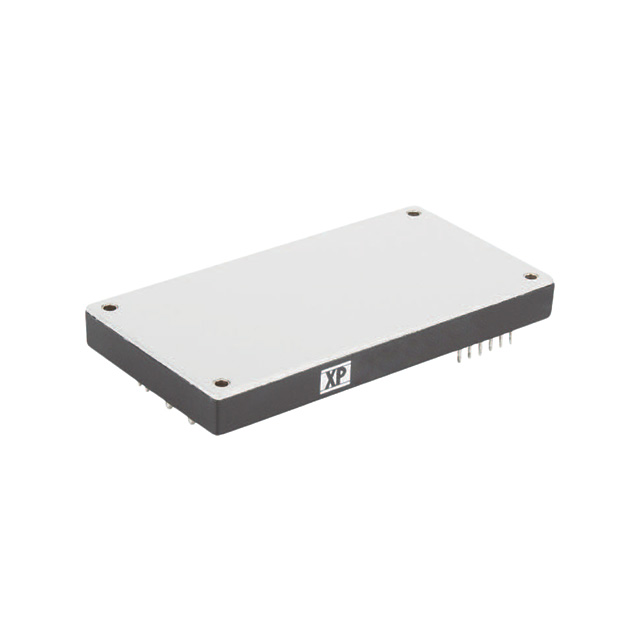

QHL750300S12
ActiveXP POWER
DC DC CONVERTER 12V 750W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QHL750300S12
ActiveXP POWER
DC DC CONVERTER 12V 750W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QHL750300S12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 62.5 A |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Full Brick |
| Power (Watts) | 750 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Full Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 425 V |
| Voltage - Input (Min) [Min] | 200 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 358.96 | |
| 5 | $ 348.19 | |||
| 10 | $ 337.42 | |||
| 25 | $ 323.06 | |||
| 100 | $ 301.53 | |||
Description
General part information
QHL750300 Series
Isolated Module DC DC Converter 1 Output 12V 62.5A 200V - 425V Input
