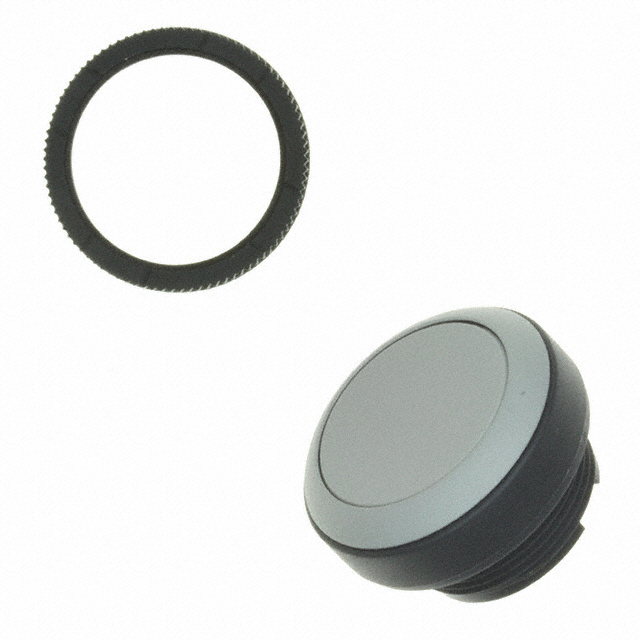

1.30250.1010208

Obsolete

RAFI USA

CONFIG SW BODY PUSHBUT NON-ILLUM

Search across all available documentation for this part.

Obsolete

RAFI USA

CONFIG SW BODY PUSHBUT NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30250.1010208

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Actuator Type	Pushbutton, Round
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Momentary

Part	Actuator Type	Illumination	Panel Cutout Dimensions	Type	Requires	(Select First, Then Apply Filters) Compatible Series
RAFI USA 1.30250.1010208	Pushbutton Round	Non-Illuminated	22.3 mm	Momentary	Contact Block(s)	Rafix 22 FS
RAFI USA 1.30250.0111508	Pushbutton Round	Illuminated - Green	22.3 mm	Maintained	Contact Block(s) Illumination Source	Rafix 22 FS
RAFI USA 1.30250.1210200	Pushbutton Round	Non-Illuminated	22.3 mm	Momentary	Contact Block(s)	Rafix 22 FS
RAFI USA 1.30250.1010108	Pushbutton Round	Non-Illuminated	22.3 mm	Momentary	Contact Block(s)	Rafix 22 FS
RAFI USA 1.30250.1010308	Pushbutton Round	Non-Illuminated	22.3 mm	Momentary	Contact Block(s)	Rafix 22 FS
RAFI USA 1.30250.0311500	Pushbutton Round	Illuminated - Green	22.3 mm	Maintained	Contact Block(s) Illumination Source	Rafix 22 FS
RAFI USA 1.30250.3210500	Pushbutton Round	Non-Illuminated	22.3 mm	Momentary	Contact Block(s)	Rafix 22 FS
RAFI USA 1.30250.1010207	Pushbutton Round	Non-Illuminated	22.3 mm	Momentary	Contact Block(s)	Rafix 22 FS
RAFI USA 1.30250.0011608	Pushbutton Round	Illuminated - Blue	22.3 mm	Momentary	Contact Block(s) Illumination Source	Rafix 22 FS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.96

General part information

Configurable Switch Body Pushbutton, Round Non-Illuminated
