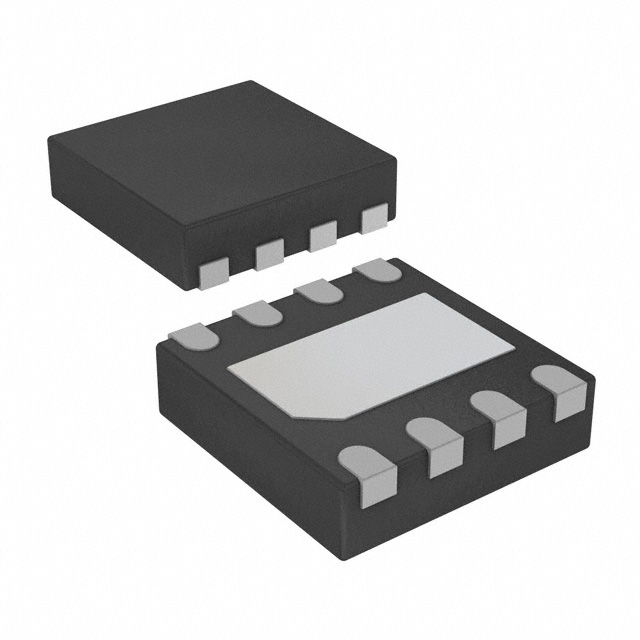

AS1312-BTDM-33
ActiveAustria Micro
SWITCHING REGULATOR, PDSO8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS1312-BTDM-33
ActiveAustria Micro
SWITCHING REGULATOR, PDSO8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS1312-BTDM-33 |
|---|---|
| Current - Output | 400 mA |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-UFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x2) |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5 V |
| Voltage - Input (Min) [Min] | 0.7 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AS1312 Series
Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 400mA (Switch) 8-UFDFN Exposed Pad
Documents
Technical documentation and resources
