GBFTX-5

Active

Curtis Industries

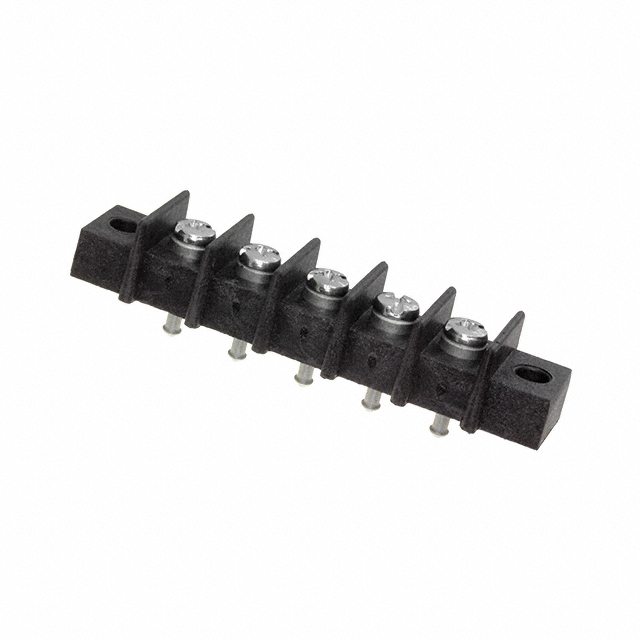

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBFTX-5

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GBFTX-5

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	5
Number of Rows	1
Number of Wire Entries	5
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GBFTX Series

Part	Number of Wire Entries	Operating Temperature	Mounting Type	Pitch [x]	Pitch [x]	Barrier Type	Terminal Block Type	Number of Rows	Material - Insulation	Top Termination	Color	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Material Flammability Rating	Number of Circuits	Terminal Screw Material	Features	Current Rating (Amps)	Number of Circuits [custom]	Number of Wire Entries [custom]
Curtis Industries GBFTX-18	18	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	18	Steel	Flange	20 A
Curtis Industries GBFTX-5	5	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	5	Steel	Flange	20 A
Curtis Industries GBFTX-21	21	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	21	Steel	Flange	20 A
Curtis Industries GBFTX-25	25	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	25	Steel	Flange	20 A
Curtis Industries GBFTX-8	8	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0		Steel	Flange	20 A	8
Curtis Industries GBFTX-11	11	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	11	Steel	Flange	20 A
Curtis Industries GBFTX-20	20	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	20	Steel	Flange	20 A
Curtis Industries GBFTX-1		110 °C	Chassis Panel			2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	1	Steel	Flange	20 A		1
Curtis Industries GBFTX-3	3	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	3	Steel	Flange	20 A
Curtis Industries GBFTX-12	12	110 °C	Chassis Panel	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	1	Polyphenylene Oxide (PPO)	Screws	Black	12 AWG	22 AWG	Solder Turret	UL94 V-0	12	Steel	Flange	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.48
		10	$ 7.26
		25	$ 6.93
		50	$ 6.23
		100	$ 5.90
		250	$ 5.35
		500	$ 4.98
		1000	$ 4.70

Description

General part information

GBFTX Series

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
