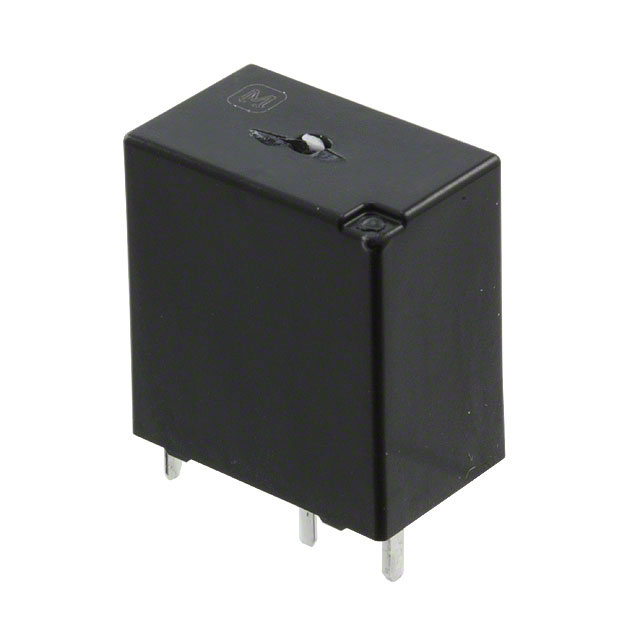

ACNH3212
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
ACNH3212
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACNH3212 |
|---|---|
| Coil Current | 37.5 mA |
| Coil Power | 450 mW |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 30 A |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.5 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.22 | |
| 10 | $ 3.95 | |||
| 25 | $ 3.51 | |||
| 50 | $ 3.34 | |||
| 100 | $ 3.16 | |||
| 250 | $ 2.81 | |||
| 500 | $ 2.64 | |||
| 1000 | $ 2.46 | |||
Description
General part information
ACNH321 Series
RELAY AUTOMOTIVE SPST 30A 12V
