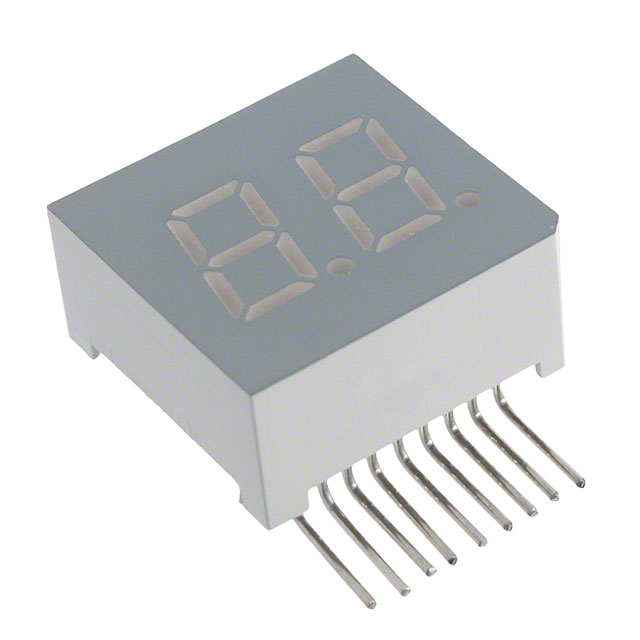

LDD-E302NI-RA
ActiveLumex Opto/Components Inc.
DISP 7SEG 0.3" DBL GRN 9SIP RA
Deep-Dive with AI
Search across all available documentation for this part.
LDD-E302NI-RA
ActiveLumex Opto/Components Inc.
DISP 7SEG 0.3" DBL GRN 9SIP RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-E302NI-RA |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.3 in |
| Digit/Alpha Size | 7.62 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 2.5 mcd |
| Number of Characters | 2 |
| Package / Case | 9-SIP Right Angle |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 7.2 mm |
| Size / Dimension [x] | 0.283 in |
| Size / Dimension [y] | 15.5 mm |
| Size / Dimension [y] | 0.61 in |
| Size / Dimension [z] | 15 mm |
| Size / Dimension [z] | 0.591 " |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.75 | |
| 10 | $ 1.81 | |||
| 100 | $ 1.33 | |||
Description
General part information
LDD-E302 Series
Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 9-SIP Right Angle
