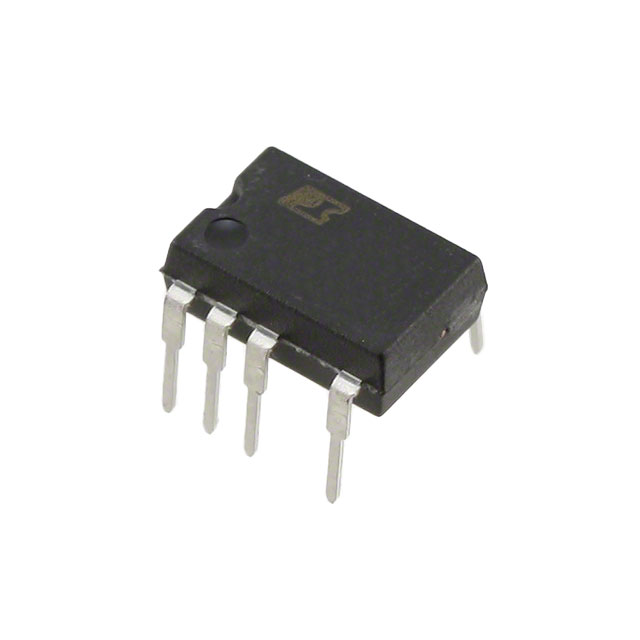

TOP255MG

Obsolete

Power Integrations

IC OFFLINE SW FLYBACK 10CSDIP

Search across all available documentation for this part.

Obsolete

Power Integrations

IC OFFLINE SW FLYBACK 10CSDIP

Technical Specifications

Parameters and characteristics for this part

Specification	TOP255MG

Duty Cycle	78 %
Fault Protection	Over Temperature, Current Limiting, Over Voltage
Frequency - Switching	66 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	7.62 mm
Package / Case	9 PC Pad, 0.3 in
Package / Case	10-SDIP
Power (Watts)	30 W
Supplier Device Package	SDIP-10C
Topology	Flyback
Voltage - Breakdown	700 V

Part	Power (Watts)	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Output Isolation	Duty Cycle	Fault Protection	Voltage - Breakdown	Mounting Type	Frequency - Switching	Supplier Device Package	Internal Switch(s)
Power Integrations TOP255MG	30 W	Flyback	150 °C	-40 °C	7.62 mm	0.3 in 9 PC Pad	10-SDIP	Isolated	78 %	Current Limiting Over Temperature Over Voltage	700 V	Through Hole	66 kHz	SDIP-10C
Power Integrations TOP255LN	81 W	Flyback	150 °C	-40 °C			7-SSIP 6 Leads Exposed Pad Formed Leads	Isolated	78 %	Current Limiting Over Temperature Over Voltage	700 V	Through Hole	66 kHz 132 kHz	eSIP-7F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology 66kHz SDIP-10C

Technical documentation and resources
