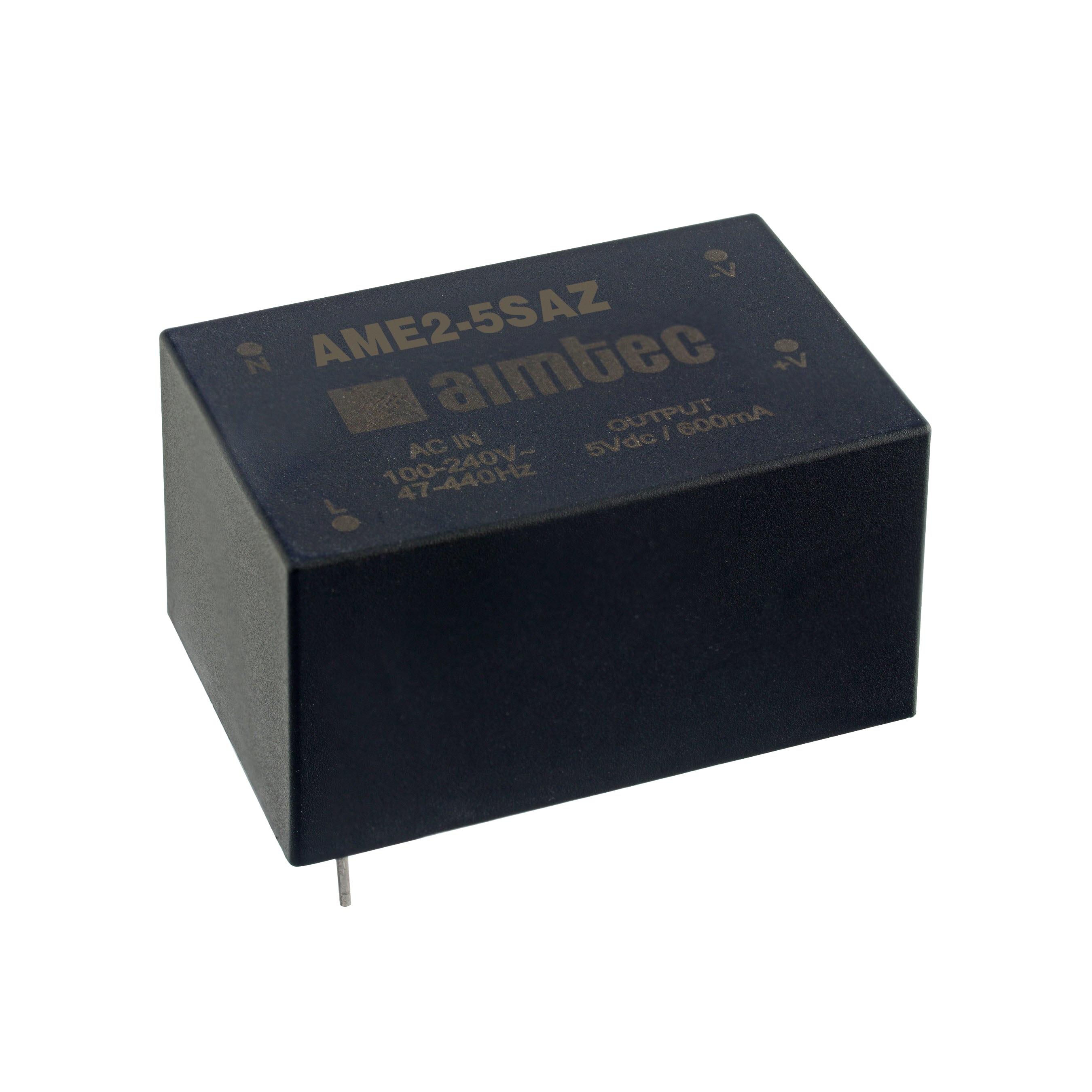

AME2-5SAZ
Unknownaimtec
AC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AME2-5SAZ
Unknownaimtec
AC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AME2-5SAZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, FCC, cURus |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 67 % |
| Line Regulation | Ý1.5% |
| Load Regulation | Ý5% |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 35.6 mm |
| Size / Dimension [x] | 1.4 in |
| Size / Dimension [y] | 0.92 " |
| Size / Dimension [y] | 23.3 mm |
| Size / Dimension [z] | 0.76 " |
| Size / Dimension [z] | 19.3 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 430 VDC, 305 VAC |
| Voltage - Input [Min] | 130 VDC, 90 VAC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 29.47 | |
| 5 | $ 29.47 | |||
| 11 | $ 29.32 | |||
| 15 | $ 29.09 | |||
| 25 | $ 28.80 | |||
| 50 | $ 28.51 | |||
| 100 | $ 28.22 | |||
| 201 | $ 27.94 | |||
| 501 | $ 23.17 | |||
Description
General part information
AME2 Series
Enclosed AC DC Converters 1 Output 5V 400mA 90 ~ 305 VAC, 130 ~ 430 VDC Input
