HR08D-12WLPN-10SC

Obsolete

Hirose Electric USA, Inc.

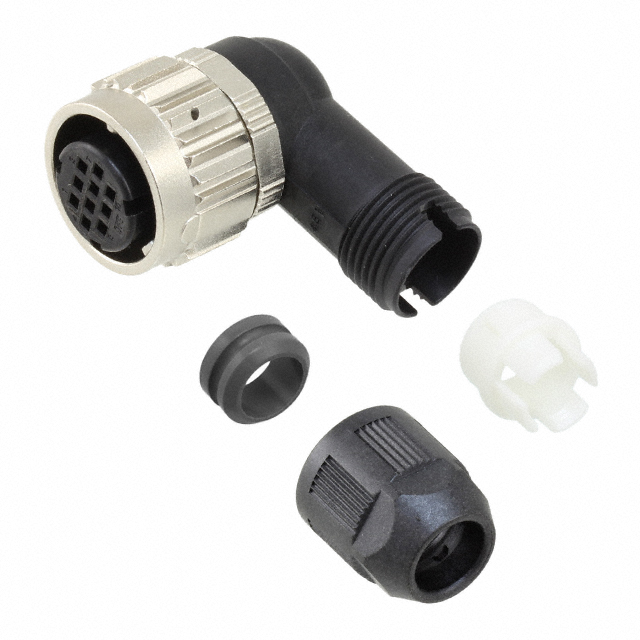

CONN PLG HSG FMAL 10PS INLINE RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HR08D Series

HR08D-12WLPN-10SC

Obsolete

Hirose Electric USA, Inc.

CONN PLG HSG FMAL 10PS INLINE RA

Deep-Dive with AI

DocumentsDatasheet HR08D Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR08D-12WLPN-10SC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Housing Color	Black, Silver
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Aluminum Alloy, Zinc Alloy
Shell Size - Insert	12
Shielding	Unshielded
Type	For Female Sockets

HR08D Series

Part	Shell Finish	Contact Shape	Insert Material	Shell Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Type	Connector Type	Number of Positions	Shielding	Type	Note	Ingress Protection	Material Flammability Rating	Orientation	Shell Size - Insert	Housing Color	Mounting Type	Primary Material	Contact Finish - Mating	Applications	Color	Voltage Rating	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Hirose Electric USA, Inc. HR08D-12WLPK-10SC(31)	Nickel	Circular	Polyphenylene Sulfide (PPS)	Aluminum Alloy Zinc Alloy	Backshell Coupling Nut Rotatable	85 °C	-20 C	Push-Twist	Crimp	Plug Housing	10	Unshielded	For Female Sockets	Contacts Not Included	IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12	Black Silver	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HR08D-12WPB-10SC(31)	Nickel	Circular	Polyphenylene Sulfide (PPS)	Aluminum Alloy Zinc Alloy	Backshell Coupling Nut	85 °C	-20 C	Push-Twist	Crimp	Plug Housing	10	Unshielded	For Female Sockets	Contacts Not Included	IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12	Black Silver	Free Hanging (In-Line)
Hirose Electric USA, Inc. HR08D-12WPA-10S	Nickel		Polyphenylene Sulfide (PPS)	Zinc Alloy	Backshell Coupling Nut	85 °C	-20 C	Push-Twist		Female Sockets Plug	10	Unshielded			IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12		Free Hanging (In-Line)	Metal	Gold	Industrial	Black Silver	200 VAC 250 VDC	Aluminum Alloy Nickel	0.203 Ám	8 Áin	Phosphor Bronze	5.7 mm	0.224 in 0.256 in	6.5 mm	3 A
Hirose Electric USA, Inc. HR08D-12WPQ-10S(31)	Nickel		Polyphenylene Sulfide (PPS)	Zinc Alloy	Backshell Coupling Nut	85 °C	-20 C	Push-Twist		Female Sockets Plug	10	Unshielded			IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12		Free Hanging (In-Line)	Metal	Gold	Industrial	Black Silver	200 VAC 250 VDC		0.2 Ám	7.87 Áin	Phosphor Bronze				3 A
Hirose Electric USA, Inc. HR08D-12WLPN-10SC	Nickel	Circular	Polyphenylene Sulfide (PPS)	Aluminum Alloy Zinc Alloy	Backshell Coupling Nut Rotatable	85 °C	-20 C	Push-Twist	Crimp	Plug Housing	10	Unshielded	For Female Sockets	Contacts Not Included	IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12	Black Silver	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HR08D-12WLPB-2S
Hirose Electric USA, Inc. HR08D-12WLPA-10SC	Nickel	Circular	Polyphenylene Sulfide (PPS)	Aluminum Alloy Zinc Alloy	Backshell Coupling Nut Rotatable	85 °C	-20 C	Push-Twist	Crimp	Plug Housing	10	Unshielded	For Female Sockets	Contacts Not Included	IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12	Black Silver	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HR08D-12WPB-2S	Nickel		Polyphenylene Sulfide (PPS)	Zinc Alloy	Backshell Coupling Nut	85 °C	-20 C	Push-Twist		Female Sockets Plug	2	Unshielded			IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12		Free Hanging (In-Line)	Metal	Gold	Industrial	Black Silver	200 VAC 250 VDC	Aluminum Alloy Nickel	0.203 Ám	8 Áin	Phosphor Bronze				3 A	0.256 in	6.5 mm	0.287 in	7.3 mm
Hirose Electric USA, Inc. HR08D-12WPA-10S(31)	Nickel		Polyphenylene Sulfide (PPS)	Zinc Alloy	Backshell Coupling Nut	85 °C	-20 C	Push-Twist		Female Sockets Plug	10	Unshielded			IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12		Free Hanging (In-Line)	Metal	Gold	Industrial	Black Silver	200 VAC 250 VDC	Aluminum Alloy Nickel	0.2 Ám	7.87 Áin	Phosphor Bronze	5.7 mm	0.224 in 0.256 in	6.5 mm	3 A
Hirose Electric USA, Inc. HR08D-12WLPM-10S(31)	Nickel		Polyphenylene Sulfide (PPS)	Zinc Alloy	Backshell Coupling Nut Rotatable	85 °C	-20 C	Push-Twist		Female Sockets Plug	10	Unshielded			IP67/IP68 - Dust Tight Waterproof	UL94 V-0	Keyed	12		Free Hanging (In-Line) Right Angle	Metal	Gold	Industrial	Black Silver	200 VAC 250 VDC	Nylon Polyamide (PA)	0.2 Ám	7.87 Áin	Phosphor Bronze	5.7 mm	0.224 in 0.256 in	6.5 mm	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HR08D Series

10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable
