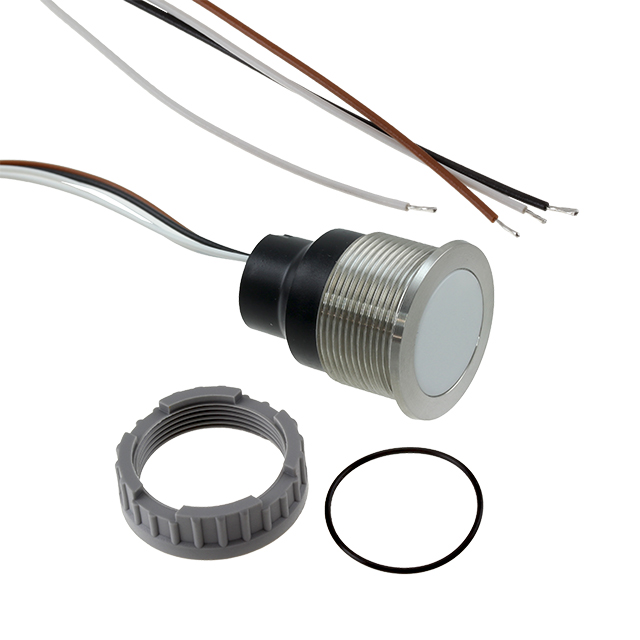

CPS22-LA00A10-SNCCWTNF-AI0RDVAR-W0000-S

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 100MA 42V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPS22-LA00A10-SNCCWTNF-AI0RDVAR-W0000-S

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 100MA 42V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CPS22-LA00A10-SNCCWTNF-AI0RDVAR-W0000-S

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Features	Ceramic Actuator
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal) [Max]	28 VDC
Illumination Voltage (Nominal) [Min]	5 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.1 mm
Switch Function	Off-On
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - AC	42 V
Voltage Rating - DC	60 VDC

CPS22-LA Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Circuit	Mounting Type	Ingress Protection	Switch Function	Current Rating (Amps)	Type	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Actuator Marking	Features	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Termination Style	Illumination Type, Color
SCHURTER Inc. CPS22-LA00A10-SNCCWTNF-AI0GBVAR-W1072-S	-40 °C	60 °C	Clear	22.1 mm	28 VDC	5 VDC	SPST	Panel Mount Front	IP67 - Dust Tight Waterproof	Off-On	100 mA	Capacitive Illuminated	42 V	60 VDC	Button Flush Round	START	Ceramic Actuator	Blue/Green	LED	Wire Leads
SCHURTER Inc. CPS22-LA00A10-SNCCWTNF-AI0RDVAR-W0000-S	-40 °C	60 °C	Clear	22.1 mm	28 VDC	5 VDC	SPST	Panel Mount Front	IP67 - Dust Tight Waterproof	Off-On	100 mA	Capacitive Illuminated	42 V	60 VDC	Button Flush Round	No Marking	Ceramic Actuator			Wire Leads	LED Red
SCHURTER Inc. CPS22-LA00A10-SNCCWTWF-AI0GCVAR-W0000-S	-40 °C	60 °C	Clear	22.1 mm	28 VDC	5 VDC	SPST	Panel Mount Front	IP67 - Dust Tight Waterproof	Off-On	100 mA	Capacitive Illuminated	42 V	60 VDC	Button Flush Round	No Marking	Ceramic Actuator Finger Guide			Wire Leads	Cyan/Green LED
SCHURTER Inc. CPS22-LA00A10-SNCCWTWF-AI0GCVAR-W1007-S	-40 °C	60 °C	Clear	22.1 mm	28 VDC	5 VDC	SPST	Panel Mount Front	IP67 - Dust Tight Waterproof	Off-On	100 mA	Capacitive Illuminated	42 V	60 VDC	Button Flush Round	G	Ceramic Actuator Finger Guide			Wire Leads	Cyan/Green LED
SCHURTER Inc. CPS22-LA00A10-SNCCWTNF-AI0WRVAR-W1043-S	-40 °C	60 °C	Clear	22.1 mm	28 VDC	5 VDC	SPST	Panel Mount Front	IP67 - Dust Tight Waterproof	Off-On	100 mA	Capacitive Illuminated	42 V	60 VDC	Button Flush Round		Ceramic Actuator			Wire Leads	LED Red/White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CPS22-LA Series

Pushbutton Switch SPST Capacitive, Illuminated Panel Mount, Front

Documents

Technical documentation and resources
