V15T16-DZ100B02

Active

Honeywell Sensing and Productivity Solutions

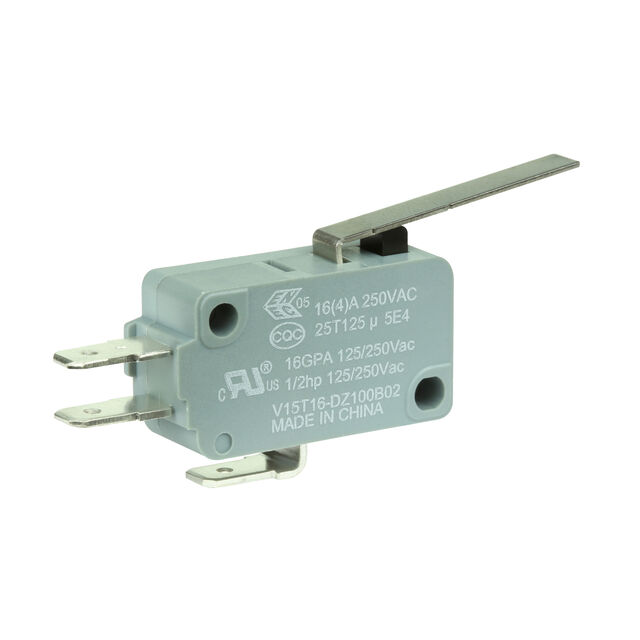

SWITCH SNAP ACTION SPDT 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV15 Basic Switch Install Instr Datasheet

V15T16-DZ100B02

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 16A 125V

Deep-Dive with AI

DocumentsV15 Basic Switch Install Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15T16-DZ100B02

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	16 A
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

V15T1 Series

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Actuator Type	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Mechanical Life	Differential Travel	Differential Travel	Operating Force	Pretravel	Pretravel	Release Force	Overtravel	Overtravel	Operating Position	Operating Position	Voltage Rating - DC	Electrical Life
Honeywell Sensing and Productivity Solutions V15T16-DZ100B02	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Lever Straight	16 A	Quick Connect - 0.187" (4.7mm)	125 V	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15T16-E1P200	SPST-NO	125 °C	-25 °C	Off-Mom	Chassis Mount	Round (Pin Plunger)	16 A	Quick Connect - 0.187" (4.7mm)	125 V	1000000 Cycles	0.5 mm	0.02 in	200 gf	1.5 mm	0.06 in	50 gf	0.76 mm	0.03 in	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T10-CZ100	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Round (Pin Plunger)	10 A 500 mA	Quick Connect - 0.250" (6.3mm)	125 V	1000000 Cycles	0.5 mm	0.02 in	100 gf	1.5 mm	0.06 in	25 gf	0.76 mm	0.03 in	0.579 in	14.7 mm	125 VDC
Honeywell Sensing and Productivity Solutions V15T16-CZ100A03	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Lever Straight	16 A	Quick Connect - 0.250" (6.3mm)	125 V	1000000 Cycles	2.6 mm	0.103 in	30 gf	6.35 mm	0.25 in		2.4 mm	0.094 in	0.602 "	15.3 mm
Honeywell Sensing and Productivity Solutions V15T16-EZ300	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Round (Pin Plunger)	16 A	Quick Connect - 0.187" (4.7mm)	250 V	1000000 Cycles	0.4 mm	0.016 "	300 gf	1.6 mm	0.063 in	75 gf	0.76 mm	0.03 in	0.579 in	14.7 mm		50000 Cycles
Honeywell Sensing and Productivity Solutions V15T10-CC200-01	SPST-NC	125 °C	-25 °C	On-Mom	Chassis Mount	Round (Pin Plunger)	10 A 500 mA	Quick Connect - 0.250" (6.3mm)	125 V	500000 Cycles	0.5 mm	0.02 in	200 gf	1.5 mm	0.06 in	50 gf	0.76 mm	0.03 in	0.579 in	14.7 mm	125 VDC
Honeywell Sensing and Productivity Solutions V15T16-SZ300A05-01	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Lever Roller	16 A	Solder Lug	125 V	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15T16-MZ300	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Round (Pin Plunger)	16 A	Solder Lug	125 V	1000000 Cycles	0.5 mm	0.02 in	300 gf	1.5 mm	0.06 in		0.76 mm	0.03 in	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T16-RC200A08	SPST-NC	125 °C	-25 °C	On-Mom	Chassis Mount		16 A	PC Pin	125 V	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15T16-MZ300-03	SPDT	125 °C	-25 °C	On-Mom	Chassis Mount	Lever Straight	16 A	Solder Lug	125 V	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 3.50

Description

General part information

V15T1 Series

Switch SPDT Chassis Mount
