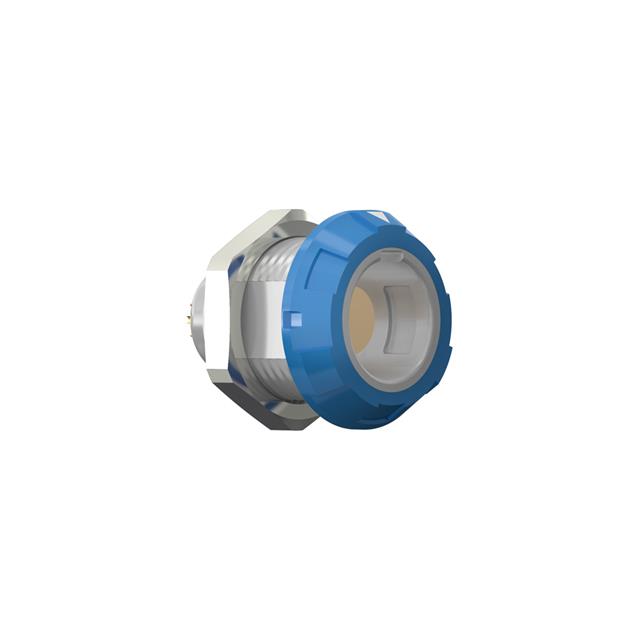

G11ME7-P09QC00-0060
ActiveODU
ODU MEDI-SNAP RECEPT, STY 1, SZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G11ME7-P09QC00-0060
ActiveODU
ODU MEDI-SNAP RECEPT, STY 1, SZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G11ME7-P09QC00-0060 |
|---|---|
| Applications | Testing Equipment, Medical, Industrial, Measurement |
| Color | Gray, Blue |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Fastening Type | Detent Lock, Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 9 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | E |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 33 V |
G11ME7-P Series
| Part | Fastening Type | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Size - Insert | Shielding | Orientation | Contact Finish - Mating | Ingress Protection | Applications | Current Rating (Amps) | Primary Material | Mounting Type | Shell Material | Mounting Feature | Connector Type | Termination | Number of Positions | Material Flammability Rating | Insert Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Detent Lock Push-Pull | 33 V | -50 °C | 120 °C | Brass | 1 | Unshielded | E | Gold | IP50 | Industrial Measurement Medical Testing Equipment | 4 A | Plastic | Panel Mount Through Hole | Polysulfone (PSU) | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Solder | 9 | UL94 V-0 | Polyetheretherketone (PEEK) | Blue Gray | |
Detent Lock Push-Pull | -50 °C | 120 °C | 1 | Unshielded | E | Gold | IP50 | 10 A | Plastic | Polysulfone (PSU) | Bulkhead - Rear Side Nut | Receptacle Female Sockets | Gray Green | |||||||||
Detent Lock Push-Pull | 33 V | -50 °C | 120 °C | Brass | 1 | Unshielded | E | Gold | IP50 | Industrial Measurement Medical Testing Equipment | 7.5 A | Plastic | Polysulfone (PSU) | Bulkhead - Rear Side Nut | Receptacle Female Sockets | 6 | UL94 V-0 | Polyetheretherketone (PEEK) | Gray | |||
Detent Lock Push-Pull | 48 VDC | -50 °C | 120 °C | Brass | 1 | Unshielded | E | Gold | IP50 | Industrial Measurement Medical Testing Equipment | 12 A | Plastic | Polysulfone (PSU) | Bulkhead - Rear Side Nut | Receptacle Female Sockets | 2 | UL94 V-0 | Polyetheretherketone (PEEK) | ||||
Detent Lock Push-Pull | 48 VDC | -50 °C | 120 °C | Brass | 1 | Unshielded | E | Gold | IP50 | Industrial Measurement Medical Testing Equipment | 12 A | Plastic | Polysulfone (PSU) | Bulkhead - Rear Side Nut | Receptacle Female Sockets | 2 | UL94 V-0 | Polyetheretherketone (PEEK) | Gray Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.31 | |
Description
General part information
G11ME7-P Series
9 Position Circular Connector Receptacle, Female Sockets Solder
