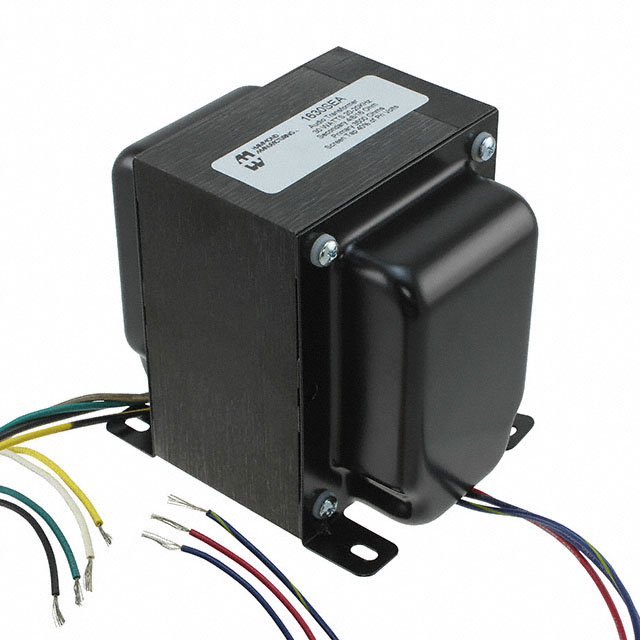

1630SEA

Active

Hammond Manufacturing

XFMR 3.5K / 4, 8, 16 CHAS MNT

Search across all available documentation for this part.

Active

Hammond Manufacturing

XFMR 3.5K / 4, 8, 16 CHAS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1630SEA

DC Resistance (DCR) - Primary	110.1 Ohm
DC Resistance (DCR) - Secondary [custom]	634 mOhm
Frequency Range [Max]	20 kHz
Frequency Range [Min]	20 Hz
Frequency Response	1 dB
Height - Seated (Max) [Max] [z]	4.65 "
Height - Seated (Max) [Max] [z]	118.11 mm
Impedance - Primary (Ohms)	3.5 kOhms
Impedance - Secondary (Ohms)	16 Ohms, 8 Ohms, 4 Ohms
Insertion Loss	1 dB
Mounting Type	Chassis Mount
Power Level	30 W
Size / Dimension [x]	126.49 mm
Size / Dimension [x]	4.98 "
Size / Dimension [y]	3.75 "
Size / Dimension [y]	95.25 mm
Termination Style	Wire Leads
Transformer Type	Single Ended Audiophile, Ultra-Linear - Tube Output
Voltage - Isolation	2828 VDC
Weight	11 lbs
Weight	5 kg

Part	Frequency Response	Voltage - Isolation	Termination Style	DC Resistance (DCR) - Secondary [custom]	Transformer Type	Impedance - Primary (Ohms)	Mounting Type	Impedance - Secondary (Ohms)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) - Primary	Insertion Loss	Frequency Range [Min]	Frequency Range [Max]	Weight	Weight	Power Level	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Hammond Manufacturing 1630SEA	1 dB	2828 VDC	Wire Leads	634 mOhm	Single Ended Audiophile Ultra-Linear - Tube Output	3.5 kOhms	Chassis Mount	4 Ohms 8 Ohms 16 Ohms	4.65 "	118.11 mm	110.1 Ohm	1 dB	20 Hz	20 kHz	11 lbs	5 kg	30 W	126.49 mm	3.75 "	95.25 mm	4.98 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5k Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Chassis Mount
