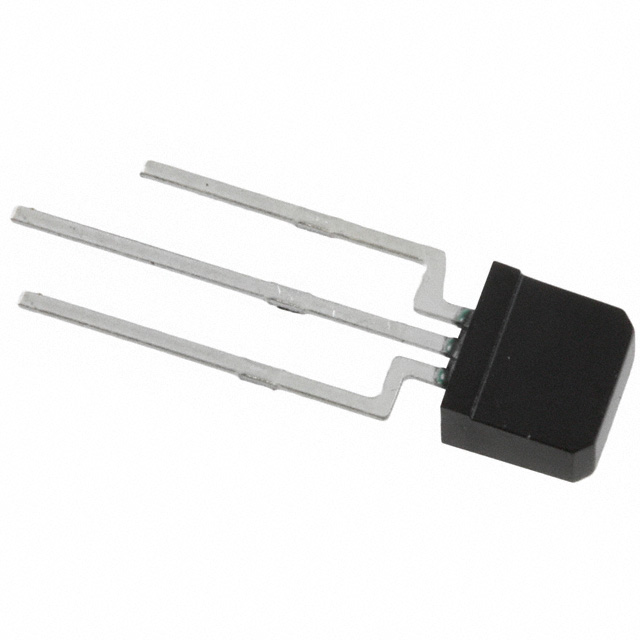

PT5529B/L2/H2-F

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM SIDE VIEW RAD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM SIDE VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	PT5529B/L2/H2-F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	Radial - 3 Leads
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Dark (Id) (Max) [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]
Everlight Electronics Co Ltd PT5529B/L2/H2-F	940 nm	30 V	Side View	85 °C	-40 °C	Through Hole	100 nA	Radial - 3 Leads	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Side View Radial - 3 Leads

Technical documentation and resources

No documents available
