Q-7101U0005003M

Active

Amphenol Custom Cable

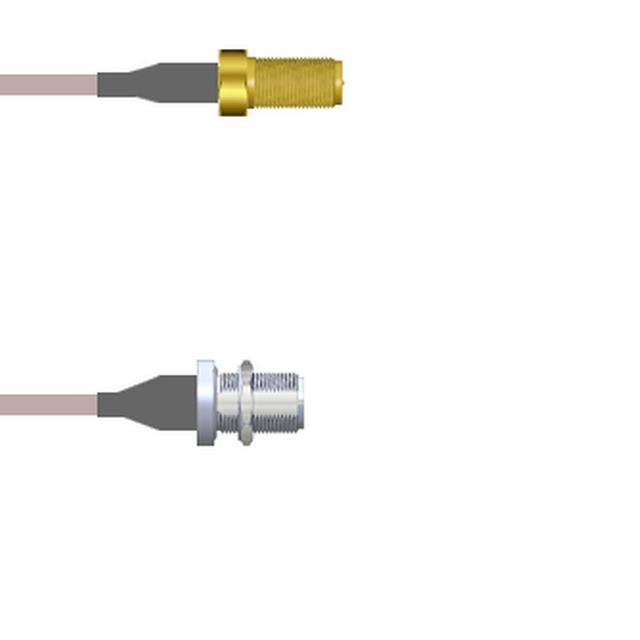

CBL ASSY RPSMA-NTYPE JK-JK 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JK-JK 9.8'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7101U0005003M

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Part	2nd Connector Mounting Feature	Color	1st Connector Mounting Type	2nd Connector	1st Contact Gender	Connector Impedance	Cable Impedance	1st Connector	Style	Features	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	2nd Contact Gender	Cable Type	Length	Length	Length
Amphenol Custom Cable Q-7101U00032.5M	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	N-Type Jack	Male	50 Ohms	50 Ohms	RP-SMA Jack	RP-SMA to N-Type	Shielded	Panel Mount	50 Ohms	12.4 GHz	Female	RG-174	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-7101U0005003M	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	N-Type Jack	Male	50 Ohms	50 Ohms	RP-SMA Jack	RP-SMA to N-Type	Shielded	Panel Mount	50 Ohms	3 GHz	Female	RG-316	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-7101U0003003M	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	N-Type Jack	Male	50 Ohms	50 Ohms	RP-SMA Jack	RP-SMA to N-Type	Shielded	Panel Mount	50 Ohms	12.4 GHz	Female	RG-174	9.8 '	118.1 in	3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to N-Type RG-316 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available
