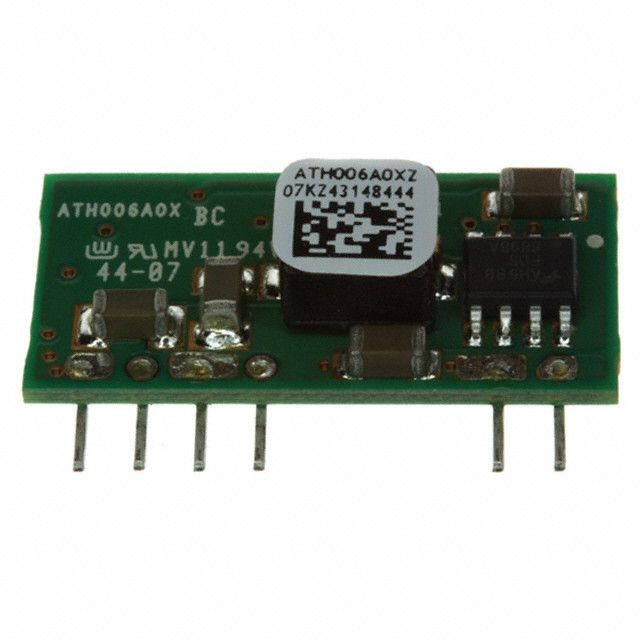

ATH006A0XZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-3.6V 21W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATH006A0XZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 96 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module |
| Power (Watts) | 21 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 6.7 mm |
| Size / Dimension [y] | 0.26 " |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.00 | |
| 5 | $ 12.25 | |||
| 10 | $ 11.95 | |||
| 25 | $ 11.55 | |||
| 50 | $ 11.26 | |||
| 100 | $ 10.98 | |||
| 250 | $ 10.62 | |||
| 500 | $ 10.35 | |||
Description
General part information
ATH006 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 6A 2.4V - 5.5V Input
