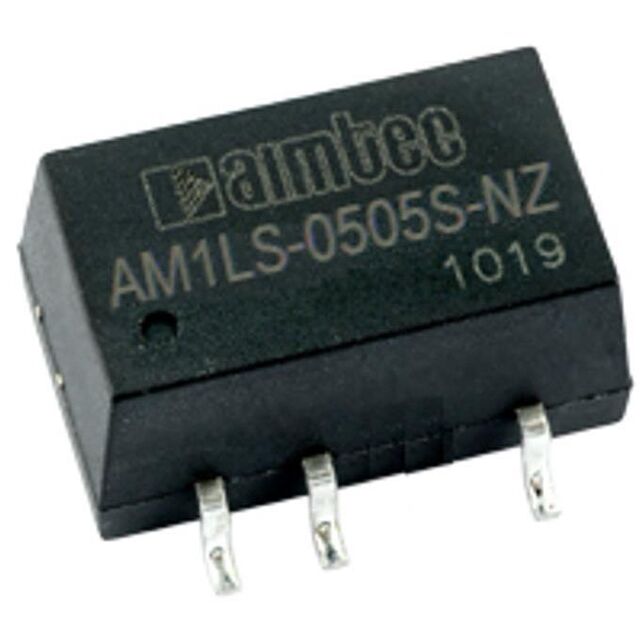

AM1LS-0524S-NZTR

Active

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1LS-0524S-NZTR

Active

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1LS-0524S-NZTR

Applications	ITE (Commercial)
Approval Agency	cULus, cURus
Current - Output (Max) [Max]	42 mA
Efficiency	80 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	SMD
Size / Dimension [x]	0.52 "
Size / Dimension [x]	13.2 mm
Size / Dimension [y]	0.33 "
Size / Dimension [y]	8.5 mm
Size / Dimension [z]	7.3 mm
Size / Dimension [z]	0.29 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V

AM1LS Series

Part	Approval Agency	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Efficiency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
aimtec AM1LS-0503SH30-NZ	cULus cURus	303 mA	3.3 V	1	74 %	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	12.7 mm	0.5 in	0.28 "	7.3 mm	0.44 in	11.2 mm	Isolated Module	5.5 V	3000 V	SMD	4.5 V
aimtec AM1LS-2409S-NZ			9 V	1	80 %	Surface Mount	-40 °C	105 C	ITE (Commercial)	12.7 mm	0.5 in	0.29 "		0.33 in		Isolated Module	26.4 V	1.5 kV	8-SMD Module 5 Leads	21.6 V	999 mW	8.3 mm	7.3 mm
aimtec AM1LS-0524S-NZTR	cULus cURus	42 mA	24 V	1	80 %	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.52 "	13.2 mm	7.3 mm		8.5 mm		Isolated Module	5.5 V	1.5 kV	SMD	4.5 V		0.33 "	0.29 "
aimtec AM1LS-0505DH30VZ				2		Surface Mount	-40 °C	105 ░C	ITE (Commercial)	15.2 mm	0.6 in	0.28 "		0.44 in		Isolated Module	5.5 V	3000 V	SMD	4.5 V		11.4 mm	7.3 mm	5 V	-5 V	-5 V	100 mA	100 mA
aimtec AM1LS-0505SJZTR	cULus cURus	200 mA	5 V	1		Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.52 "	13.2 mm	7.3 mm		8.5 mm		Isolated Module	5.5 V	1.5 kV	SMD	4.5 V		0.33 "	0.29 "
aimtec AM1LS-0305S-NZ	cULus cURus	200 mA	5 V	1	74 %	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	12.7 mm	0.5 in	0.28 "	7.3 mm	0.44 in	11.2 mm	Isolated Module	3.63 V	1.5 kV	SMD	2.97 V
aimtec AM1LS-0505DH30-NZ			5 V	2		Surface Mount	-40 °C	105 C	ITE (Commercial)	15.2 mm	0.6 in	0.29 "		0.33 in		Isolated Module	5.5 V	3000 V	10-SMD Module 6 Leads	4.5 V		8.5 mm	7.3 mm			-5 V	100 mA	100 mA
aimtec AM1LS-0503SJZ	cULus cURus	303 mA	3.3 V	1	74 %	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.52 "	13.2 mm	7.3 mm		8.5 mm		Isolated Module	5.5 V	1.5 kV	SMD	4.5 V		0.33 "	0.29 "
aimtec AM1LS-0503DH30VZ				2	74 %	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	15.2 mm	0.6 in	0.28 "		0.44 in		Isolated Module	5.5 V	3000 V	SMD	4.5 V		11.4 mm	7.3 mm	3.3 V	-3.3 V	-3.3 V		151 mA
aimtec AM1LS-0509SVZ			9 V	1	83 %	Surface Mount	-40 °C	105 ░C	ITE (Commercial)	0.52 "	13.2 mm	7.3 mm		8.5 mm		Isolated Module	5.5 V	1.5 kV	SMD	4.5 V	1 mW	0.33 "	0.29 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AM1LS Series

Isolated Module DC DC Converter 1 Output 24V 42mA 4.5V - 5.5V Input
