891-10-064-30-120000

Obsolete

Mill-Max Manufacturing Corp.

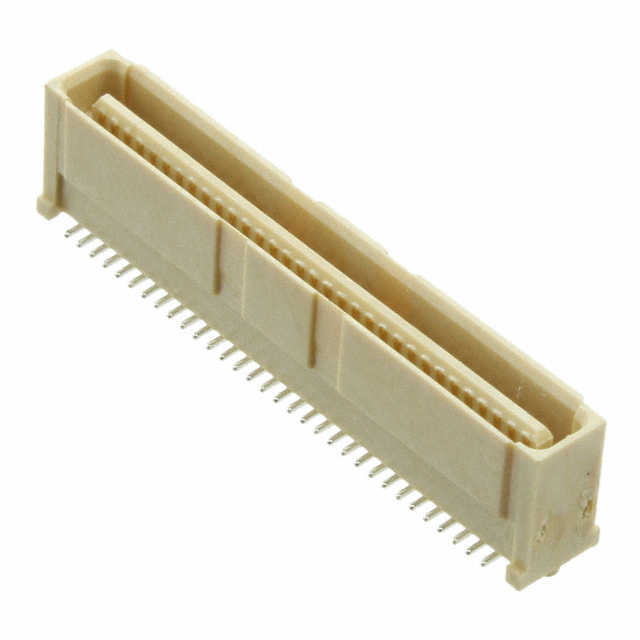

CONN HDR 64POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Mill-Max Manufacturing Corp.

CONN HDR 64POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	891-10-064-30-120000

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.329 in
Height Above Board	8.35 mm
Mated Stacking Heights	10 mm
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Mounting Type	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish
Mill-Max Manufacturing Corp. 891-10-064-30-120000	Surface Mount	Board Guide	0.329 in	8.35 mm	10 Áin	0.25 Ám	64	Header Outer Shroud Contacts	2	0.039 in	1 mm	10 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

64 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
