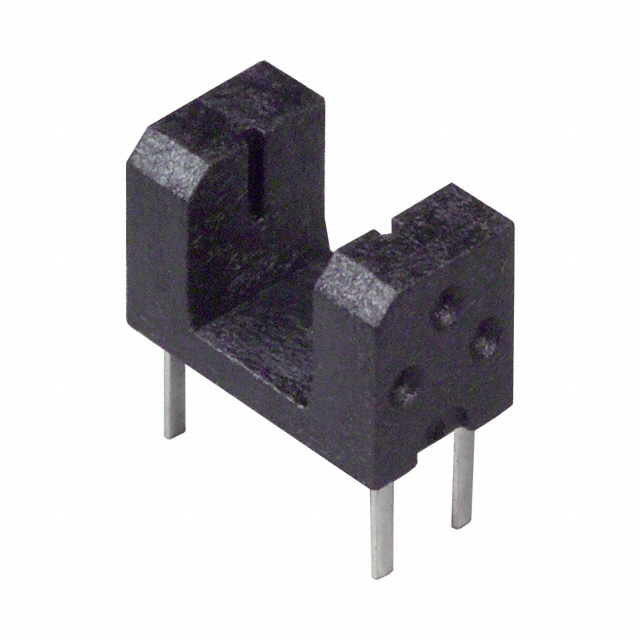

RPI-441C1

Active

Rohm Semiconductor

TRANSISTOR OUTPUT SLOTTED SWITCH, 1-CHANNEL, 4MM SLOT WIDTH, 8 X 5.20 MM, 4.20 MM HEIGHT, PLASTIC PACKAGE-4

Search across all available documentation for this part.

Active

Rohm Semiconductor

TRANSISTOR OUTPUT SLOTTED SWITCH, 1-CHANNEL, 4MM SLOT WIDTH, 8 X 5.20 MM, 4.20 MM HEIGHT, PLASTIC PACKAGE-4

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-441C1

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	10 µs
Sensing Distance	4 mm
Sensing Distance	0.157 in
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Photointerrupter Double Mold Type

Part	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - DC Forward (If) (Max)	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Sensing Distance	Sensing Distance	Voltage - Collector Emitter Breakdown (Max) [Max]	Output Configuration	Response Time	Type
Rohm Semiconductor RPI-441C1	Through Hole	30 mA	50 mA	Through-Beam	-25 °C	85 °C	PCB Mount	4 mm	0.157 in	30 V	Phototransistor	10 µs	Unamplified

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.
