803-91-092-62-001000

Active

Mill-Max Manufacturing Corp.

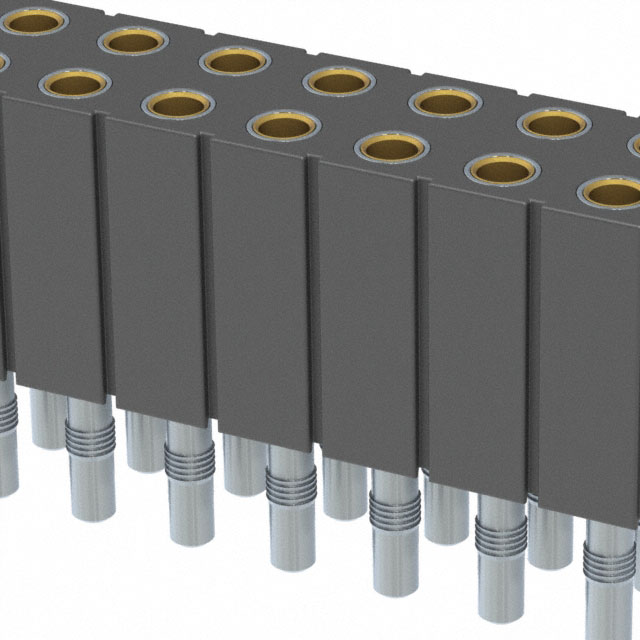

CONN RCPT 92POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

803-91-092-62-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 92POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-91-092-62-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.143 in
Contact Length - Post [x]	3.63 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	92
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder, Press-Fit

803-91 Series

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Fastening Type	Contact Shape	Current Rating (Amps)	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Contact Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Type	Insulation Material	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 803-91-034-30-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Solder	2	10 çin	0.25 çm	0.338 in	8.59 mm	Tin-Lead	0.1 in	2.54 mm	All	34	Beryllium Copper	Surface Mount	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 803-91-074-30-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Solder	2	10 çin	0.25 çm	0.338 in	8.59 mm	Tin-Lead	0.1 in	2.54 mm	All	74	Beryllium Copper	Surface Mount	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold
Mill-Max Manufacturing Corp. 803-91-044-62-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Press-Fit Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	44	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in	0.143 in	3.63 mm
Mill-Max Manufacturing Corp. 803-91-020-10-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	20	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in			0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-91-060-10-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	60	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in			0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-91-098-61-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Press-Fit Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	98	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in			0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 803-91-028-61-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Press-Fit Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	28	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in			0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 803-91-032-61-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Press-Fit Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All		Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in			0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 803-91-068-10-002000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	68	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	4.2 mm	0.165 in	0.125 in	3.18 mm
Mill-Max Manufacturing Corp. 803-91-092-62-001000	2.54 mm	0.1 in	Receptacle	Push-Pull	Circular	4.5 A	Press-Fit Solder	2	10 çin	0.25 çm			Tin-Lead	0.1 in	2.54 mm	All	92	Beryllium Copper	Through Hole	200 µin	5.08 µm	UL94 V-0	-55 °C	125 °C	Black	Female Socket	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	7 mm	0.276 in	0.143 in	3.63 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 27.88

Description

General part information

803-91 Series

92 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
