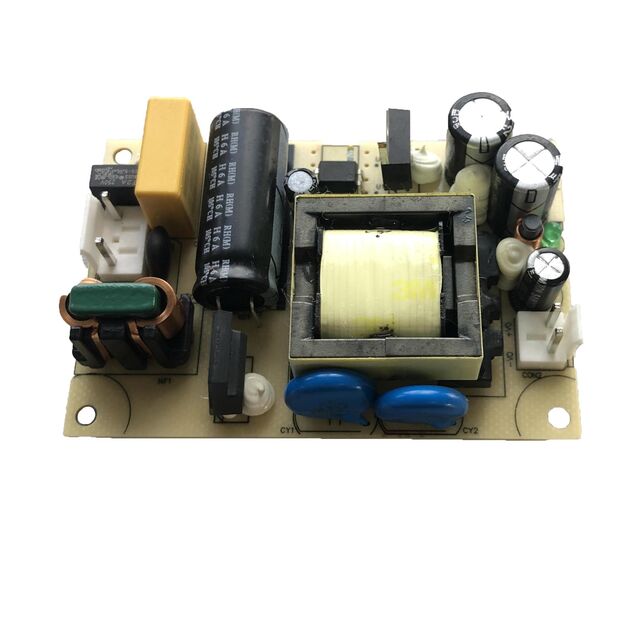

AMEOF30-24SJZ
Activeaimtec
AC/DC CONVERTER 24V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEOF30-24SJZ
Activeaimtec
AC/DC CONVERTER 24V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEOF30-24SJZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 1.25 A |
| Efficiency | 87 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 27 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 100 V, 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.86 | |
| 5 | $ 29.45 | |||
| 10 | $ 28.71 | |||
| 15 | $ 28.42 | |||
| 25 | $ 27.85 | |||
| 50 | $ 27.30 | |||
| 75 | $ 26.07 | |||
| 100 | $ 23.03 | |||
| 200 | $ 22.34 | |||
Description
General part information
AMEOF30 Series
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC, 100 ~ 370 VDC Input
