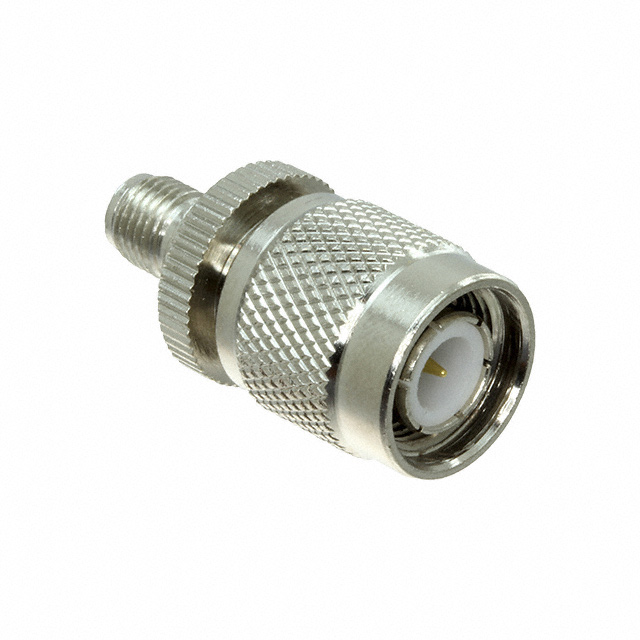

ADAPT/SMAF/TNCM

Active

Siretta Ltd

CONN ADAPT SMA JACK TO TNC PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADAPT/SMAF/TNCM

Active

Siretta Ltd

CONN ADAPT SMA JACK TO TNC PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADAPT/SMAF/TNCM

Adapter Series	SMA to TNC
Adapter Type	Plug to Jack
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	TNC Plug, Male Pin
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

ADAPT Series

Part	Style	Frequency - Max [Max]	Mounting Type	Adapter Series	Adapter Type	Convert From (Adapter End)	Conversion Type	Convert To (Adapter End)	Center Gender	Impedance	Fastening Type
Siretta Ltd ADAPT/FMEM/SMAF	Straight	6000 MHz	Free Hanging (In-Line)	SMA to FME	Plug to Jack	Female Socket SMA Jack	Between Series	FME Plug Male Pin
Siretta Ltd ADAPT/SMAF/TNCMRP	Straight		Free Hanging (In-Line)	SMA to TNC	Jack to Jack	Female Socket SMA Jack	Between Series	Female Socket TNC Jack	Female to Female
Siretta Ltd ADAPT/SMAF/TNCM	Straight	6000 MHz	Free Hanging (In-Line)	SMA to TNC	Plug to Jack	Female Socket SMA Jack	Between Series	Male Pin TNC Plug		50 Ohms
Siretta Ltd ADAPT/SMAM/SMAF/RP	Straight		Free Hanging (In-Line)	SMA to RP-SMA	Plug to Jack	SMA Plug Male Pin	Between Series	Male Pin RP-SMA Jack	Male to Male
Siretta Ltd ADAPT/MCXF/SMAM	Straight		Free Hanging (In-Line)	SMA to MCX	Plug to Jack		Between Series	Male Pin SMA Plug			Snap-On Threaded
Siretta Ltd ADAPT/MCXM/FMEM	Straight		Free Hanging (In-Line)	MCX to FME	Plug to Plug	MCX Plug Male Pin	Between Series	FME Plug Male Pin	Male to Male		Snap-On Threaded
Siretta Ltd ADAPT/FMEF/FMEF	Straight	6000 MHz	Free Hanging (In-Line)	FME to FME	Jack to Jack	Female Socket FME Jack	Same Series	Female Socket FME Jack	Female to Female
Siretta Ltd ADAPT/FMEM/SMAM	Straight	6000 MHz	Free Hanging (In-Line)	SMA to FME	Plug to Plug	SMA Plug Male Pin	Between Series	FME Plug Male Pin	Male to Male	50 Ohms
Siretta Ltd ADAPT/N-TYPEM/SMAF	Straight	6000 MHz	Free Hanging (In-Line)		Plug to Jack	Female Socket SMA Jack	Between Series	Male Pin N Plug
Siretta Ltd ADAPT/FMEM/FMEF	Straight	6000 MHz	Free Hanging (In-Line)	FME to FME	Plug to Jack	Female Socket FME Jack	Same Series	FME Plug Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 8.42
		10	$ 6.46
		25	$ 5.83
		50	$ 5.40
		100	$ 5.02
		250	$ 4.56
		500	$ 4.25
		1000	$ 3.98
		2500	$ 3.69

Description

General part information

ADAPT Series

Adapter Coaxial Connector SMA Jack, Female Socket To TNC Plug, Male Pin 50 Ohms

Documents

Technical documentation and resources
