OSTOQ065451

Active

On Shore Technology Inc.

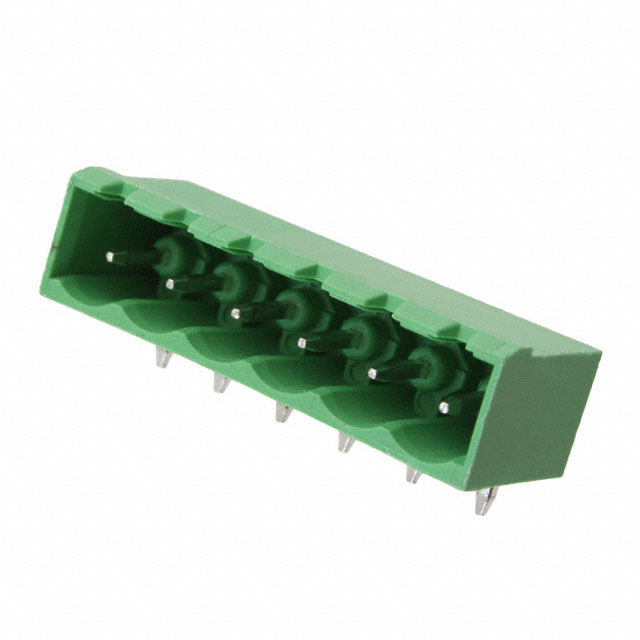

TERM BLOCK HDR 6POS 90DEG 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ065451

Active

On Shore Technology Inc.

TERM BLOCK HDR 6POS 90DEG 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ065451

Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Solder
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ06 Series

Part	Type	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Features	Mounting Type	Header Orientation	Insulation Height	Insulation Height	Voltage - UL	Contact Material	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Positions	Housing Material	Contact Mating Finish	Insulation Height [custom]	Insulation Height [custom]
On Shore Technology Inc. OSTOQ063550	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6	Mating Flange	Solder	Vertical	3.5 mm	0.138 in	300 V	Brass	3.5 mm	0.138 in	UL94 V-0	0.15 in	3.81 mm	6	Thermoplastic	Tin
On Shore Technology Inc. OSTOQ065451	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	6		Solder	90° Right Angle			300 V		4 mm	0.157 in		0.2 in	5.08 mm	6	Thermoplastic	Tin	0.157 in	4 mm
On Shore Technology Inc. OSTOQ06A050	Header Male Pins Shrouded (2 Side)	1	-30 ░C	105 ░C	6		Solder	Vertical			300 V	Brass	4 mm	0.157 in		0.295 in	7.5 mm	6	Thermoplastic	Tin	0.157 in	4 mm
On Shore Technology Inc. OSTOQ067550	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6	Mating Flange	Solder	Vertical			300 V	Brass	4 mm	0.157 in	UL94 V-0	0.197 in	5 mm	6	Thermoplastic	Tin	0.157 in	4 mm
On Shore Technology Inc. OSTOQ063250	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6		Solder	Vertical	3.5 mm	0.138 in	300 V	Brass	3.5 mm	0.138 in		0.15 in	3.81 mm	6	Thermoplastic	Tin
On Shore Technology Inc. OSTOQ065550	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6	Mating Flange	Solder	Vertical			300 V	Brass	4 mm	0.157 in	UL94 V-0	0.2 in	5.08 mm	6	Thermoplastic	Tin	0.157 in	4 mm
On Shore Technology Inc. OSTOQ065350	Header Male Pins Shrouded (2 Side)	1	-30 ░C	105 ░C	6		Solder	Vertical			300 V	Brass	4 mm	0.157 in		0.2 in	5.08 mm	6	Thermoplastic	Tin	0.157 in	4 mm
On Shore Technology Inc. OSTOQ063251	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6		Solder	90° Right Angle	3.5 mm	0.138 in	300 V	Brass	3.5 mm	0.138 in		0.15 in	3.81 mm	6	Thermoplastic	Tin
On Shore Technology Inc. OSTOQ06A551	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6	Mating Flange	Solder	90° Right Angle			300 V	Brass	4 mm	0.157 in	UL94 V-0	0.295 in	7.5 mm	6	Thermoplastic	Tin	0.157 in	4 mm
On Shore Technology Inc. OSTOQ061551	Header Male Pins Shrouded (4 Side)	1	-30 ░C	105 ░C	6	Mating Flange	Solder	90° Right Angle	3.5 mm	0.138 in	300 V	Brass	3.5 mm	0.138 in	UL94 V-0	0.138 in	3.5 mm	6	Thermoplastic	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.29
		10	$ 0.69
		25	$ 0.57
		50	$ 0.51
		100	$ 0.46
		250	$ 0.41
		500	$ 0.39
		1000	$ 0.37
		5000	$ 0.34

Description

General part information

OSTOQ06 Series

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Solder
